Description

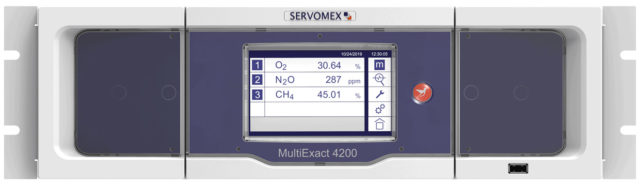

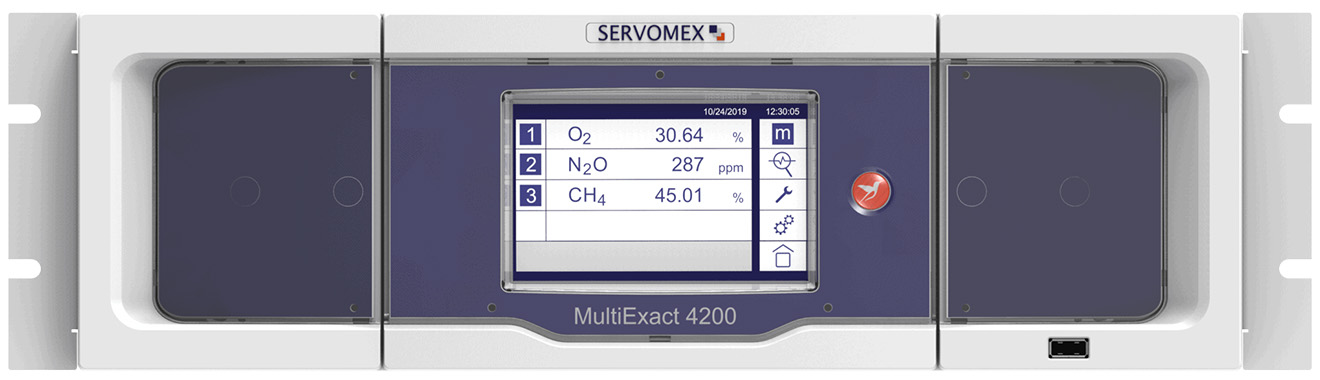

The Servomex SERVOPRO MultiExact 4200 Multi-Gas Analyzer is designed specifically for the industrial gases market with the ability to measure up to four gas streams simultaneously. It includes an intuitive, user-friendly LCD interface and a full suite of outputs including RS232/RS485 serial data output and Modbus digital communications. Simplified ongoing maintenance is delivered through easy intuitive integrated menu configuration while the non-depleting, low drift sensors ensure extended calibration intervals.
Gases Detected
- Oxygen (O2)
- Carbon dioxide (CO2)
- Nitrous oxide (N2O)
- Carbon monoxide (CO)
- Methane (CH4)
Технические характеристики
Features
- Accuracy:
- 0.15% O2 absolute (O2 control)
- 0.1 ppm or 1% of reading (CO2 trace)
- 0.5 ppm or 1% of reading (CO, N2O, and CH4 trace)
- 1% of full scale range (CO, CO2, and CH4 %)
- Sensing technologies:
- Paramagnetic
- Infrared
- Gas filter correlation
- 4 relays standard
- 4 alarms per sensor
