Additional Features:
- Basic model (with TCXO)
- Duplex Generator
- 50 MHz Tracking Generator
- Spectrum Analyzer
- Terminated RF Wattmeter
- Programmable Test Memory
- Signal Strength Meter
- RF Scan/RF Counter Function
- Signaling Simulator: Encoder and Decoder
- General Purpose & Modulation Oscilloscope
- AM, FM Signal Generator
- Off-the-Air Sensitive Receiver
- Graphic Screen Print and Self Calibration
- RS-232/Serial Printer Interface (Standard)

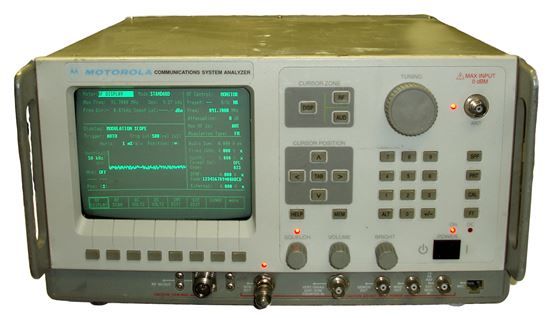

Because of its unique design, the R2600 Series allows you to perform many complex functions from the same piece of equipment. This “one box” design is particularly helpful in remote sites where use of multiple pieces of heavy equipment are impractical–or impossible.
Featuring user-programmable storage locations for fast, easy access to the most frequently used channel information, the Motorola R2600 Series gives users the flexibility to create customized test set-ups. It also provides digitized displays for storage and printout, “soft keys” and windowing for ease of operation, auto ranging capabilities with both analog/digital readouts and signaling encoding/decoding functions.
When the “Cellular Option” is installed, the R2600 Series tests cellular personal, portable, transportable and mobile radiotelephones by simulating fixed end (cell-site) signaling. The R2600 Series is capable of testing in several formats: AMPS, EAMPS, NAMPS, TACS, ETACS, JTACS and NTACS.
Additionally, with the “Cellular Option,” the Motorola R2600 Series features a cellular AUTO TEST that allows the user to push one key to activate a powerful and efficient go/no-go test of the subscriber radio.
Технические характеристики
| Manufacturer | Motorola |
|---|---|
| Condition | Used |
