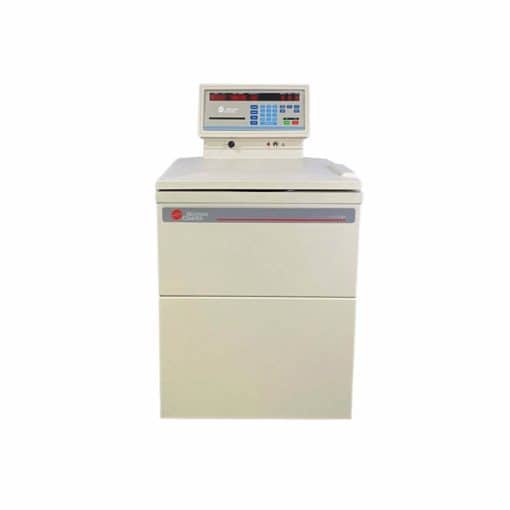

Product Description The Beckman J6-MI is a versatile high capacity centrifuge that is capable of delivering a high level of performance in separation techniques for bioprocessing, clinical, research and blood separation laboratories. The J6-MI centrifuge solution uniquely designed to achieve key separations in volumes up to 6 Liters. Enjoy maintenance free operations due to the rugged, brushless induction drive which delivers high torque, fast acceleration, and extended motor life due to low wear. Experience full control with up to ten operator definable acceleration and deceleration profiles. Eliminate rotor imbalance with the exclusive ARIES rotors, designed to auto correct opposing, imbalanced loads up to 100 grams without manual intervention or delay. GMI is a great resource for used lab equipment. Whenever our group has an equipment need&hellip,floor shaker, incubator, freezer, centrifuge, etc., GMI is one of the first places I check. Their staff is knowledgeable, friendly, and very professional. #text-2934293609 { color: rgb(0,0,0), } #text-2934293609 > * { color: rgb(0,0,0), } Dan George / Google GMI has always provided prompt service and is extremely competitive in pricing and products. We have enjoyed working with the excellent customer service. #text-4245333308 { color: rgb(0,0,0), } #text-4245333308 > * { color: rgb(0,0,0), } Denise Cosgrove / Google #gap-1231512310 { padding-top: 30px, } #image_986484585 { width: 54%, } Let our team of experts help you find the perfect equipment for your application and budget, schedule a free meeting now: #text-1524087802 { font-size: 1rem, color: rgb(0,0,0), } #text-1524087802 > * { color: rgb(0,0,0), } Technical Specifications Height 91.0 cm (35.5 in), with door open 160 cm (63 in) Width 71.1 cm (28 in) Depth 83.8 cm (33 in) Weight 252 kg (555 lb) Approximate Acceleration Time Select from 9 acceleration rates (including maximum acceleration) Approximate Deceleration Time Select from 9 deceleration rates (including maximum dynamic braking, or a coasting stop from full speed) g Force 6,835 x g Max Capacity Volume Range 6,000 mL Max Speed 6,000 rpm Maximum Heat Dissipation into Room under Steady-State 1.9 kW (7,000 Btu/hr) Noise Level 1 Meter in Front of Centrifuge <, 63 dBA Set Speed Actual rotor speed ±,20 rpm of set speed Set Temperature -20 C to +40 C Set Time Up to 99 hr 59.9 min for timed runs, entries greater than 99 hr 59.9 min signal hold or continuous operation Speed Range 100 to 6,000 rpm Temperature Control ±,2 for temperature from 0 to ambient, after equilibration.1 Temperature Control at higher or lower temperatures depends on the rotor and speed used (some rotors have a narrower range of Temperature Control) Ambient Temperature Range 16 C to 38 C Clearances Required 15.0 cm (6.0 in) Humidity Restrictions <, 95% (noncondensing) Pollution Degree 2 Rotor Chamber Diameter 58.0 cm (23 in) Time Actual Display Indicates time remaining for timed runs, time elapsed for continuous operation Finish Urethane paint on chamber door, vinyl paint on other painted surfaces, Mylar 2 on control panel Operating Modes Key switch selects NORMAL, PROGRAM LOCK, or ZONAL operation Beckman J6 Series The Beckman J6 Series is a line of versatile centrifuges for high-capacity laboratory applications. Designed with important safety features and special diagnostics built in, the J6 centrifugal systems are compatible with a wide range of rotors, carriers, adapters and other accessories. The Beckman J6 Series centrifuge is available in three models: the basic, easy-to operate analog Beckman J6-HC centrifuge, the more sophisticated digital Beckman J6-MC centrifuge, and the digital Beckman J6-MI centrifuge with brushless induction drive. The Beckman J6 centrifuges are designed to provide maximum uptime and increased productivity. These systems can be equipped with the ARIES (Automatic Rotor Imbalance Equilibrating System) rotors which eliminate manual sample balancing. The rugged belt-drive motors also provide higher torque and faster acceleration, and offer low wear and long motor life. Built with a sophisticated detection system, the Beckman J6 centrifuge prevents operation in the event of rotor imbalance, overspeed or overtemperature conditions. An electronic door interlock also ensures that the chamber door is securely closed before a run can begin, and remains locked during the course of the run ensuring operator safety. For maximum versatility, optional Beckman rotors and accessories are available to assist any laboratory in getting the most from the J6 Series instruments.
Технические характеристики
Technical Specifications
| Height | 91.0 cm (35.5 in), with door open 160 cm (63 in) |
| Width | 71.1 cm (28 in) |
| Depth | 83.8 cm (33 in) |
| Weight | 252 kg (555 lb) |
| Approximate Acceleration Time | Select from 9 acceleration rates (including maximum acceleration) |
| Approximate Deceleration Time | Select from 9 deceleration rates (including maximum dynamic braking, or a coasting stop from full speed) |
| g Force | 6,835 x g |
| Max Capacity Volume Range | 6,000 mL |
| Max Speed | 6,000 rpm |
| Maximum Heat Dissipation into Room under Steady-State | 1.9 kW (7,000 Btu/hr) |
| Noise Level 1 Meter in Front of Centrifuge | <, 63 dBA |
| Set Speed | Actual rotor speed ±20 rpm of set speed |
| Set Temperature | -20° C to +40° C |
| Set Time | Up to 99 hr 59.9 min for timed runs, entries greater than 99 hr 59.9 min signal ‘hold’ or continuous operation |
| Speed Range | 100 to 6,000 rpm |
| Temperature Control | ±2° for temperature from 0° to ambient, after equilibration.1 Temperature Control at higher or lower temperatures depends on the rotor and speed used (some rotors have a narrower range of Temperature Control) |
| Ambient Temperature Range | 16° C to 38° C |
| Clearances Required | 15.0 cm (6.0 in) |
| Humidity Restrictions | <, 95% (noncondensing) |
| Pollution Degree | 2 |
| Rotor Chamber Diameter | 58.0 cm (23 in) |
| Time — Actual Display | Indicates time remaining for timed runs, time elapsed for continuous operation |
| Finish | Urethane paint on chamber door, vinyl paint on other painted surfaces, Mylar 2 on control panel |
| Operating Modes | Key switch selects NORMAL, PROGRAM LOCK, or ZONAL operation |
