Серия PV (вертикальная напольная модель проектора с системой направленного вниз освещения)

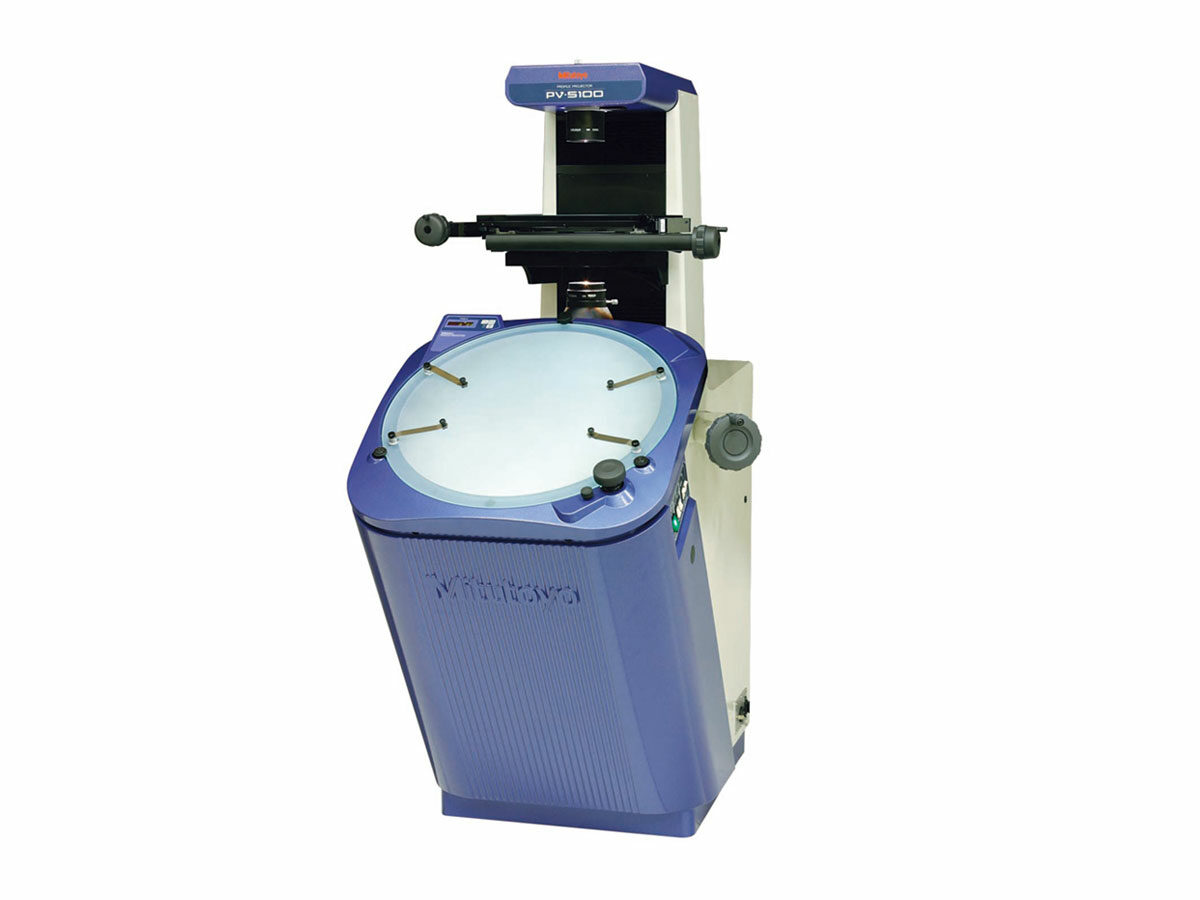

Вертикальный профильный проектор Mitutoyo PV-5110 представляет собой напольную модель с системой направленного вниз освещения и наклонным экраном для удобного отслеживания деталей или сравнения шаблонов.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The floor placement and angled 500mm screen on the Mitutoyo PV-5110 vertical profile projector allows for easing tracing and template comparisons of projected images. The downward oblique surface illumination system provides clear and bright images for easy inspection of non-reflective workpieces such as plastic parts or printed materials.

Large 500mm screen
Floor model that uses a downward illumination system
Digital readout protractor screen (including zero-setting, ABS/INC coordinate switching functions) for easy and error-free angle measurement
Angled screen allows projected images to be easily traced or compared with a template

Order No.:	Product Image:	Model:	Screen Rotation:	Measuring Unit:	Table Size:	Effective Table Area:	Mass:	Range X-Axis:	Range Y-Axis:	Resolution:	Workpiece Max Height:	Workpiece Max Load:	Accessories:

Order No.:

304-919A

PV-5110

360 dgree fine feed and clamp

built-in linear scale

15.9 x 9.8 / 380 x 250

10.5 x 6.7″ / 380 x 250mm

467lbs lbs. / 210kg

8″ / 200mm

4″ / 100mm

0.00004″ / 0.001mm

7.12″ / 181mm

17.6lbs / 8kg

—

304-919A

Технические характеристики

Projected Image:	Inverted
Screen Size:	20′ / 508mm
Screen Material:	Fine Ground Glass
Reference Line:	Cross Hair Line
Angle Display:	Resolution 1 minute or 0.01 degree ( switchable), range +/- 370 degree, functions: absolute/incremental mode switching, zero set
Magnification Accuracy Contour Illumination:	+/- 0.1 % or less
Magnification Accuracy Surface Illumination:	+/- 0.15% or less
Projection Lens:	10X
Contour Illumination Light Source:	Halogen Bulb ( 24V, 150W )
Contour Illumination Optical System:	Telecentric System
Contour Illumination Functions:	2-step brightness switch, heat-absoribing filter, cooling fan
Surface Illumation Light Source:	Halogen Bulb ( 24V, 150W )
Surface Illumination Optical System:	Vertical illumination
Power Supply:	120V AC, 50/60Hz
