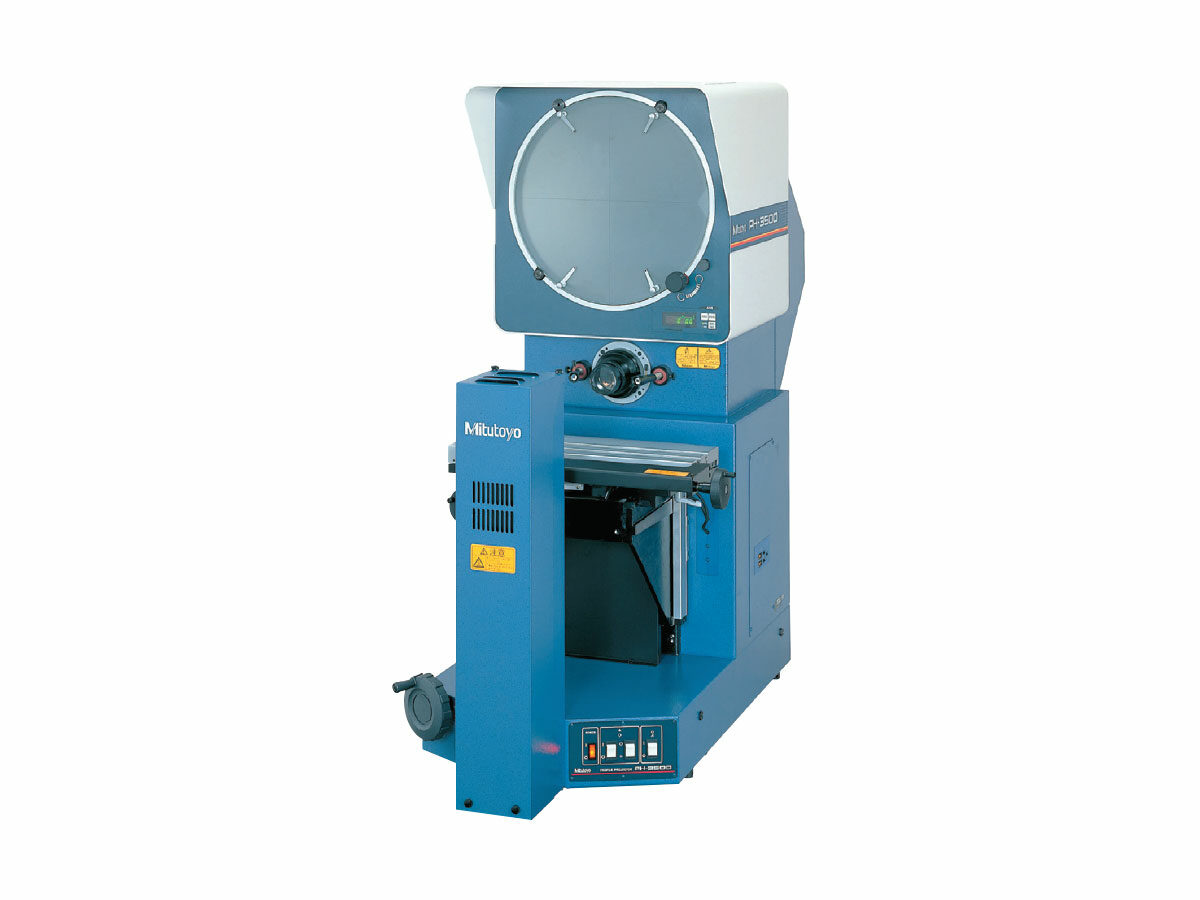

The Mitutoyo PH-3515F profile projector produces bright crisp images on its 14-inch digital protractor screen for easier, more accurate inspections. Linear glass scales and a vertical beam, telecentric optical system on the PH-3515F makes for fast, accurate measurements.
• Floating work stage provides moves with precision for better accuracy and can handle workloads up to 100 lbs.
• Fiber optic cables provide surface illumination for better, more natural workpiece visibility
• Generous 10” x 6” x- and y-axis work stage travel delivers generous range to cover many application needs
• Digital protractor displays in absolute or incremental units for angle measurements
• Image displays erect on the high brightness screen
• Screen rotates 360° for infinite viewing options
• 2D measurement processing is available through the use of the QM data or M2 software
• Variety of workpiece fixtures available to accommodate different parts
| Order No.: | Product Image: | Model: | Screen Rotation: | Measuring Unit: | Table Size: | Mass: | Accessories: | Range X-Axis: | Range Y-Axis: | Resolution: | Workpiece Max Height: | Workpiece Max Load: | |
|---|
| 172-868A |  | PH-3515 | +/- 360 degree, Fine feed and clamp | Built-in linear scales | 17.7 x 5.7 / 450 x 146 | 333 lbs. / 150kg | — | 10″ / 254mm | 6″ / 152mm | 0.00005″ / 0.001mm | 9.25″ / 235mm | 100lbs / 45kg |
Технические характеристики
| Projected Image: | Erect |
|---|
| Screen Size: | 14′ / 353mm |
|---|
| Screen Material: | Fine Ground Glass |
|---|
| Reference Line: | Cross Hair Line |
|---|
| Angle Display: | Resolution 1 minute or 0.01 degree ( switchable), range +/- 370 degree, functions: absolute/incremental mode switching, zero set |
|---|
| Magnification Accuracy Contour Illumination: | +/- 0.1 % or less |
|---|
| Magnification Accuracy Surface Illumination: | +/- 0.15% or less |
|---|
| Projection Lens: | Standard Accessory 10x ( 172-184), optional accessories: 5x, 20x, 50x, and 100x |
|---|
| Contour Illumination Light Source: | Halogen Bulb ( 24V, 150W ) |
|---|
| Contour Illumination Optical System: | Telecentric System |
|---|
| Contour Illumination Functions: | 2-step brightness switch, heat-absorbing filter, cooling fan |
|---|
| Surface Illumation Light Source: | Halogen Bulb ( 24V, 150W ) |
|---|
| Surface Illumination Optical System: | Adjustable condenser lens, heat-absorbing filter, cooling fan |
|---|
| Required Accessories: | — |
|---|
| Power Supply: | 120V AC, 50/60Hz |
|---|
