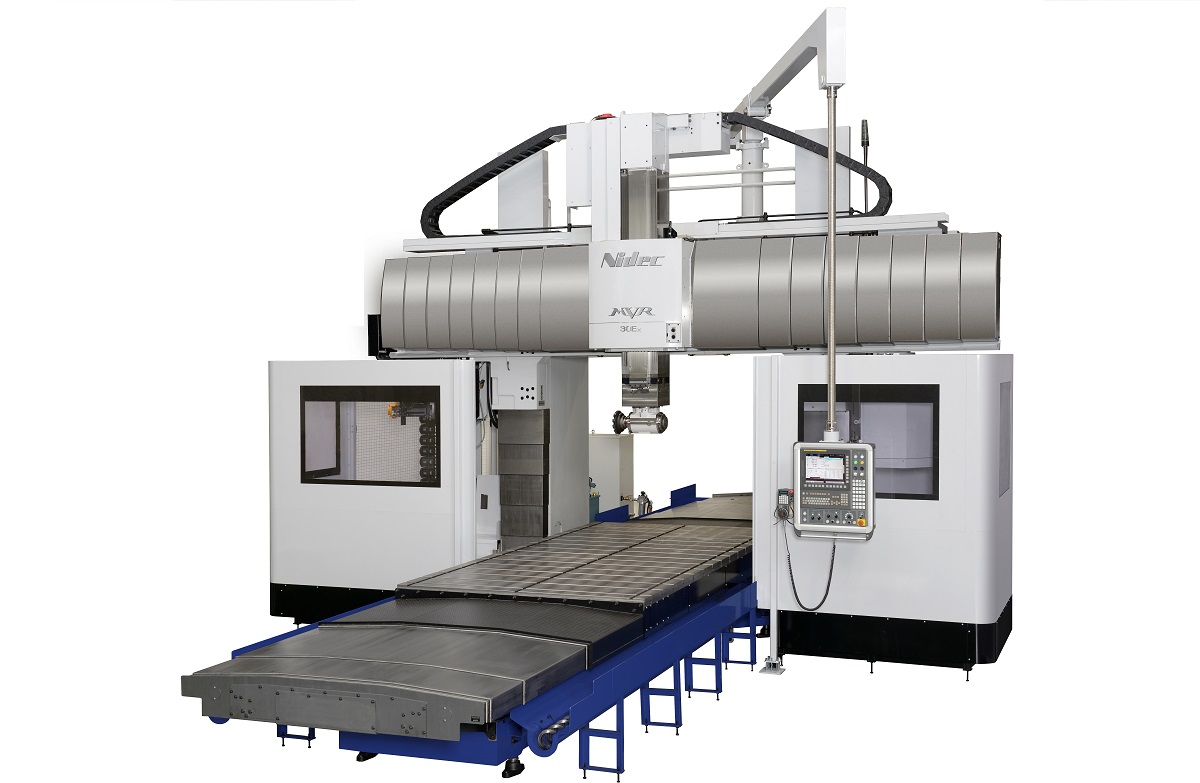

Nidec has taken their best selling MVR series, already known for its powerful, heavy-cutting, right-angle head and rigid square RAM vertical spindle, and upgraded it with an internally cooled spindle and thermostabilized columns as standard equipment. This unmatched technology makes the Nidec MVR-Ex series highly accurate and thermally stable. Combined with their team of U.S. based, factory-trained technicians, Nidec Machine Tool America LLC has the machines and support for your large part machining needs.
Технические характеристики
Specifications
MVR-Ex Models
- MVR25Ex
Specification Detail Distance Between Columns 80.7′ Distance from Table to Spindle Nose 65.0’/77.2′ Table Longitudinal (X-Axis) 126.0′ — 322.8′ Saddle Crosswire (Y-Axis) 98.4’/106.3′ Ram Vertical (Z-Axis) 31.5’/39.4′ Crossrail Vertical (W-Axis) 43.3′ Ram Size 13.8′ x 13.8′ Spindle Horsepower 40/50 HP (other options available) Spindle Speed 8,000 RPM (direct drive) / 4,000 RPM (gear head) Number of Tools 50 (options up to 240) Rapid Traverse X-Axis Travel 1,181′ (other options available) Rapid Traverse Y-Axis Travel 1,181′ Rapid Traverse Z-Axis Travel 591′ Rapid Traverse W-Axis Travel 197′ - MVR30Ex
Specification Detail Distance Between Columns 100.4′ Distance from Table to Spindle Nose 65.0’/77.2′ Table Longitudinal (X-Axis) 126.0′ — 322.8′ Saddle Crosswire (Y-Axis) 118.1’/126.0′ Ram Vertical (Z-Axis) 31.5’/39.4′ Crossrail Vertical (W-Axis) 43.3′ Ram Size 13.8′ x 13.8′ Spindle Horsepower 40/50 HP (other options available) Spindle Speed 8,000 RPM (direct drive) / 4,000 RPM (gear head) Number of Tools 50 (options up to 240) Rapid Traverse X-Axis Travel 1,181′ (other options available) Rapid Traverse Y-Axis Travel 1,181′ Rapid Traverse Z-Axis Travel 591′ Rapid Traverse W-Axis Travel 197′ - MVR35Ex
Specification Detail Distance Between Columns 128.0′ Distance from Table to Spindle Nose 72.8’/84.6’/96.5′ Table Longitudinal (X-Axis) 165.4′ — 401.6′ Saddle Crosswire (Y-Axis) 137.8’/153.5′ Ram Vertical (Z-Axis) 31.5’/39.4′ Crossrail Vertical (W-Axis) 51.2′ Ram Size 13.8′ x 13.8′ Spindle Horsepower 40/50 HP (other options available) Spindle Speed 8,000 RPM (direct drive) / 4,000 RPM (gear head) Number of Tools 50 (options up to 240) Rapid Traverse X-Axis Travel 886′ (other options available) Rapid Traverse Y-Axis Travel 886′ Rapid Traverse Z-Axis Travel 591′ Rapid Traverse W-Axis Travel 197′ - MVR40Ex
Specification Detail Distance Between Columns 147.6′ Distance from Table to Spindle Nose 72.8’/84.6’/96.5′ Table Longitudinal (X-Axis) 165.4′ — 401.6′ Saddle Crosswire (Y-Axis) 157.5’/173.2′ Ram Vertical (Z-Axis) 31.5’/39.4′ Crossrail Vertical (W-Axis) 51.2′ Ram Size 13.8′ x 13.8′ Spindle Horsepower 40/50 HP (other options available) Spindle Speed 8,000 RPM (direct drive) / 4,000 RPM (gear head) Number of Tools 50 (options up to 240) Rapid Traverse X-Axis Travel 886′ (other options available) Rapid Traverse Y-Axis Travel 886′ Rapid Traverse Z-Axis Travel 591′ Rapid Traverse W-Axis Travel 197′ - MVR45Ex
Specification Detail Distance Between Columns 167.3′ Distance from Table to Spindle Nose 84.6’/96.5′ Table Longitudinal (X-Axis) 244.1′ — 401.6′ Saddle Crosswire (Y-Axis) 177.2’/192.9′ Ram Vertical (Z-Axis) 31.5’/39.4′ Crossrail Vertical (W-Axis) 51.2′ Ram Size 13.8′ x 13.8′ Spindle Horsepower 40/50 HP (other options available) Spindle Speed 8,000 RPM (direct drive) / 4,000 RPM (gear head) Number of Tools 50 (options up to 240) Rapid Traverse X-Axis Travel 787′ (other options available) Rapid Traverse Y-Axis Travel 787′ Rapid Traverse Z-Axis Travel 591′ Rapid Traverse W-Axis Travel 197′
