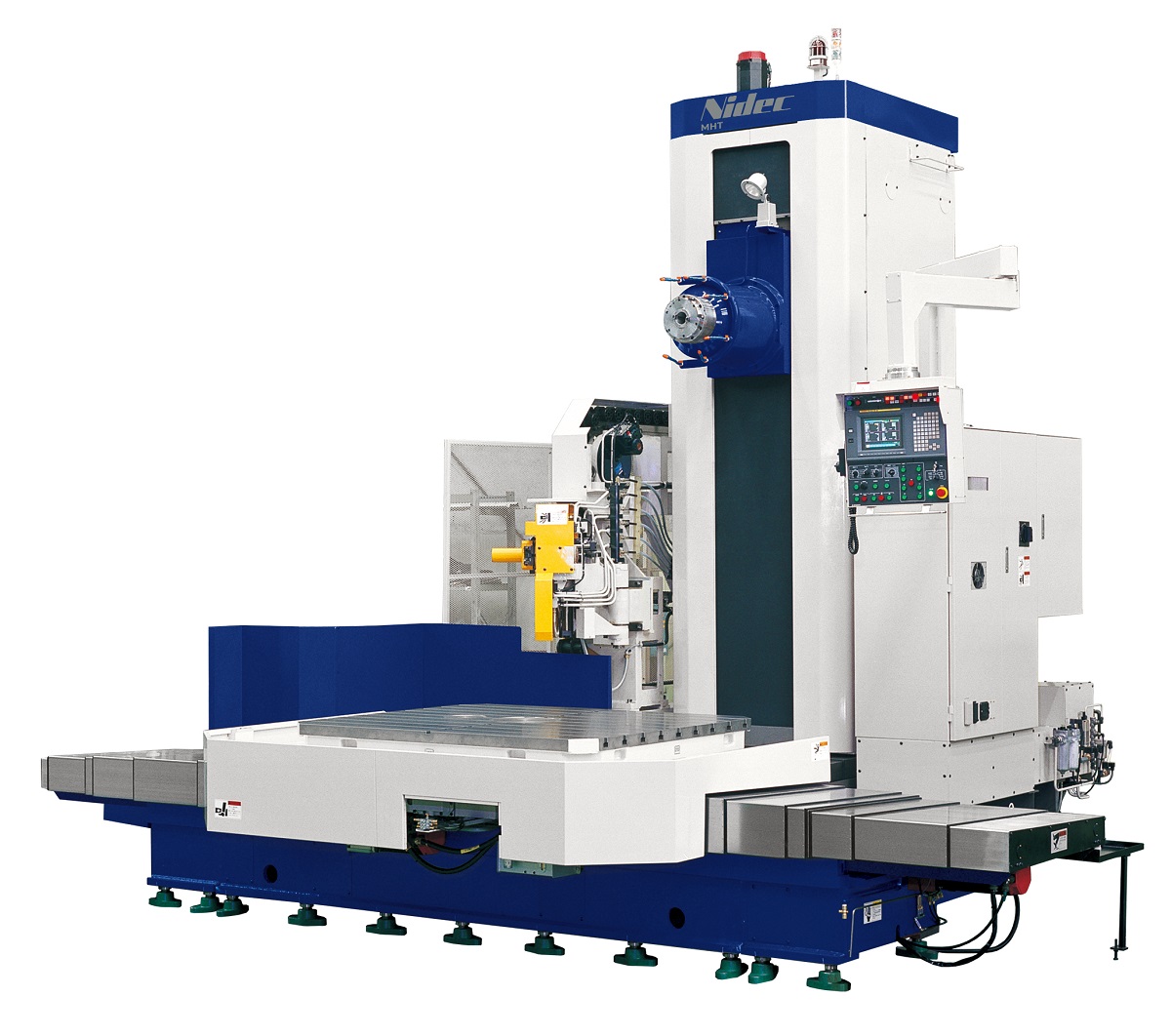

The Nidec MHT Series machines construction is designed to achieve an optimized structure that delivers stable performance for heavy-duty or high-speed machining.
Технические характеристики
Specifications
MHT Models
- MHT1416
Specification Detail X-Axis Travel 78.7′ (opt. 118.1′) Y-Axis Travel 59.1′ (opt. 78.7′) Z Axis Travel (Column in/out) 51.2» W Axis Travel (Spindle in/out) 19.7» Table Size 55.1′ x 63.0′ Boring Spindle Diameter 5.1» Spindle RPM 2500 (opt. 4000) Spindle Taper CAT-50 Spindle Horsepower 20 HP (opt. 30 HP, 35 HP, 40 HP, 50 HP) ATC Capacity 40 (opt. 80, 120, 238) - MHT1618
Specification Detail X-Axis Travel 78.7′ (opt. 118.1′) Y-Axis Travel 78.7′ (opt. 98.4′) Z Axis Travel (Column in/out) 51.2» W Axis Travel (Spindle in/out) 19.7» Table Size 63.0′ x 70.9′ Boring Spindle Diameter 5.1» Spindle RPM 2500 (opt. 4000) Spindle Taper CAT-50 Spindle Horsepower 20 HP (opt. 30 HP, 35 HP, 40 HP, 50 HP) ATC Capacity 40 (opt. 80, 120, 238)
