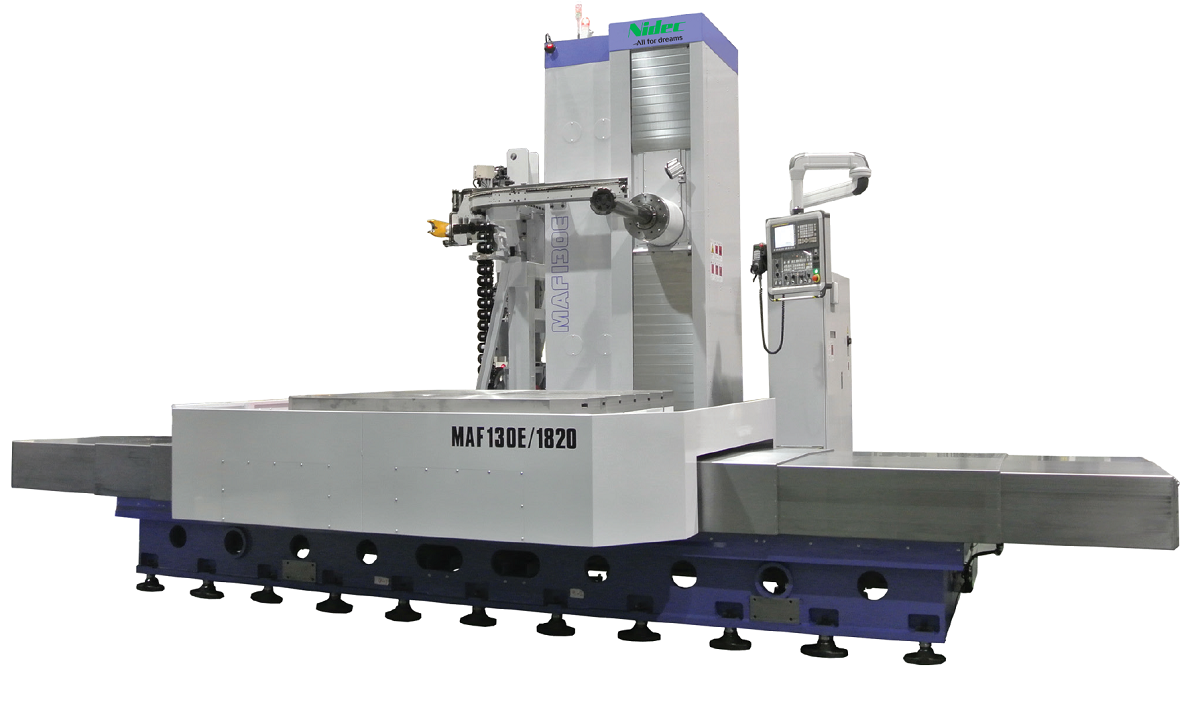

The Nidec MAF-E is a horizontal boring mill that allows you to maximize your machining capabilities. This series was designed with hydrostatic guideways adopted for X,Y,Z and B axes to realize the heavy duty machining and the difficult-to-machine materials required for vibration damping.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| X-Axis Travel | 118.1′ (opt. 137.8′, 157.4′) |
| Y-Axis Travel | 78.7 (opt. 98.4′, 118.1′) |
| Z-Axis Travel (Column in/out) | 59.1′ (opt. 78.7′) |
| W-Axis Travel (Spindle in/out) | 31.4′ |
| Table Size | 70.8′ x 78.7′ (opt. 78.7′ x 86.61′, 78.7′ x 98.4′) |
| Table Load | 33,000 lb. (opt. 44,000 lb.) |
| Boring Spindle Diameter | 5.1′ (opt. 5.9′) |
| Spindle RPM | 3,000 |
| Spindle Taper | CAT-50 |
| Spindle Horsepower | 50/40 (opt. 60/50) |
| ATC Capacity | 30 (opt. 40, 60, 80) |
