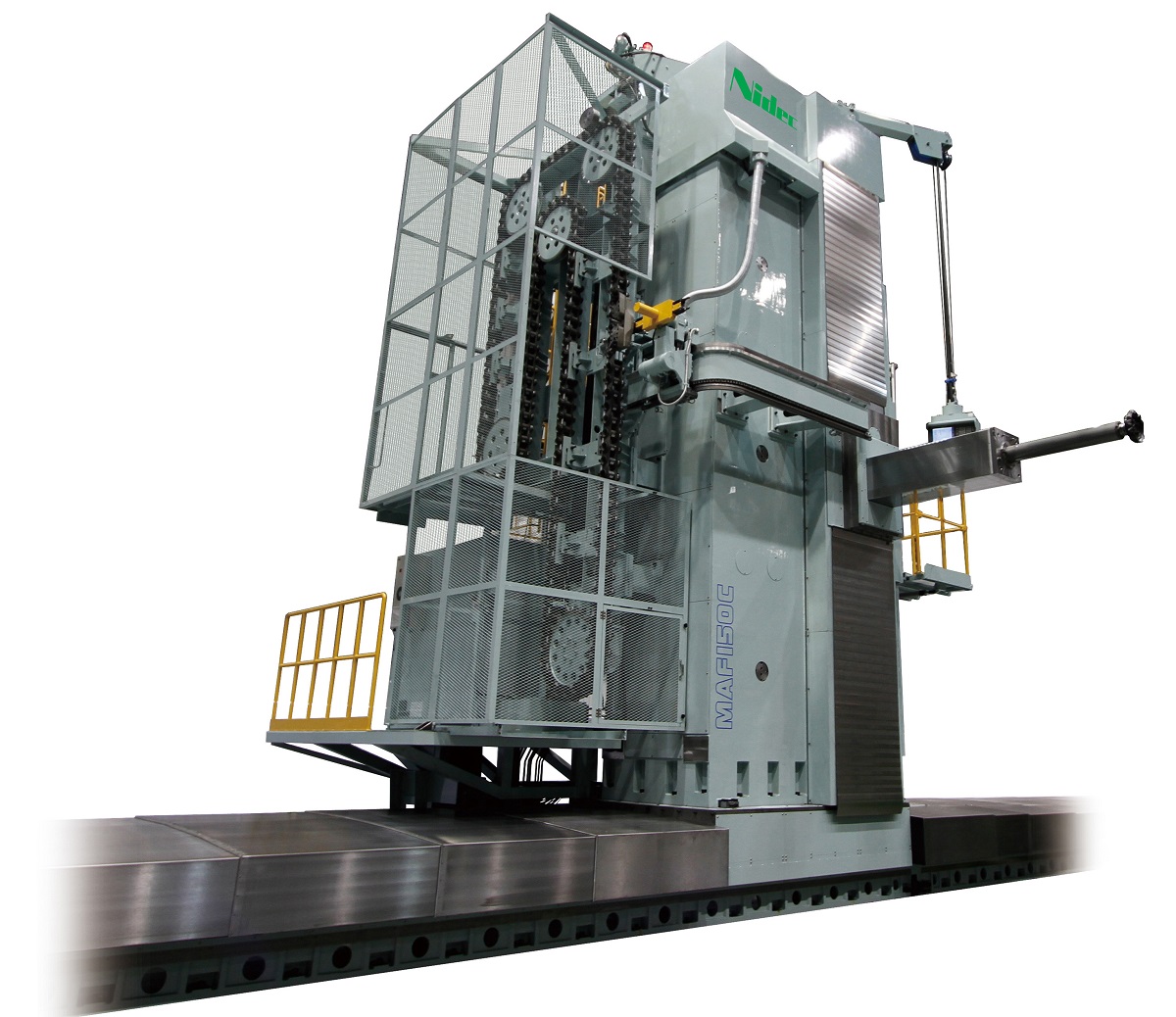

The Nidec MAF-C Series has accuracy compensation mechanisms that represent a different approach to the status quo which we have found due to our extensive analysis technologies. The MAF-C is a world-leading machine that has improved accuracy, cutting ability and rigidity, enabling even deeper cuts.
Технические характеристики
Specifications
MAF-C Models
- MAF-C150
Specification Detail X-Axis Travel 196.9′ (opt. 78.7) Y-Axis Travel 118.1 (opt. 157.5′, 196.9′) Z-Axis Travel (Column in/out)
49.2 W-Axis Travel (Spindle in/out)
39.4′ Milling Spindle Diameter Φ7.9′ Boring Spindle Diameter Φ5.9′ Spindle RPM 6~2,500 Spindle Taper No. 50 Spindle Horsepower 74/101/114 Machine Weight 77,200 lbs - MAF-C180
Specification Detail X-Axis Travel 196.9′ (opt. 78.7) Y-Axis Travel 118.1 (opt. 157.5′, 196.9′) Z-Axis Travel (Column in/out)
49.2 W-Axis Travel (Spindle in/out)
39.4′ Milling Spindle Diameter Φ9.4′ Boring Spindle Diameter Φ7.1′ Spindle RPM 6~2,500 Spindle Taper No. 50 Spindle Horsepower 74/101/114 Machine Weight 77,200 lbs
