The Sensepeek (6014) SQ200 is a 200 MHz handsfree oscilloscope probe. Therefore, it is easy to find the optimum spot to place your probe by making use of it’s magnetic bottom. The Sensepeek 6014 can be used as a handsfree oscilloscope probe as well as a handheld oscilloscope probe. Just like the Sensepeek 6023, the Sensepeek 6014 has a lower point of gravity which makes it more stable compared with the original SP series of handsfree probes such as the Sensepeek 4014. In order for the magnetic bottom to stay in place, you will need a base plate like the Sensepeek 4021. Some important features of the Sensepeek 6014 are the fact that the probe has multiple ground options, probe tip protection, a longer cable and support for oscilloscopes with automatic scaling (10:1).
Model overview Model SQ200 SQ350 SQ500 3 dB bandwidth DC to 200 MHz DC to 350 MHz DC to 500 MHz Capacitance at probe tip 13.9 pF 12.7 pF 9 pF Price 57.44 €57.44 Excl. VAT 78.51 €78.51 Excl. VAT 98.76 €98.76 Excl. VAT Specifications Attenuation10:1 Resistance at probe tip
10 MΩ Scope input impedance
1 MΩ Maximum working voltage
150 V RMS Temperature range
-20 °C — +50 °C Probe tip diameter0.5 mm Weight40 g Accessories

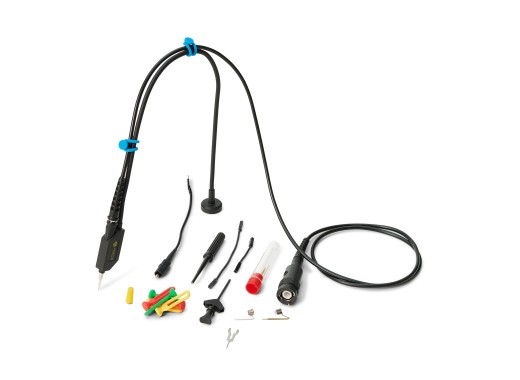

The Sensepeek 6014 comes by default with:
- 1x SQ probe holder for handsfree measurement
- 1x Testhook with detachable cables (5cm & 10cm) for convenient ground connection
- 1x Alligator cable for convenient ground connection
- 1x Standard ground spring, for handheld measurements at rated bandwidth
- 1x Unique ground spring, for total handsfree measurements at rated bandwidth
- 1x Set of color coded cable holders (4 colors)
- 1x Probe tip protection
- 1x Extra test needle
