Description

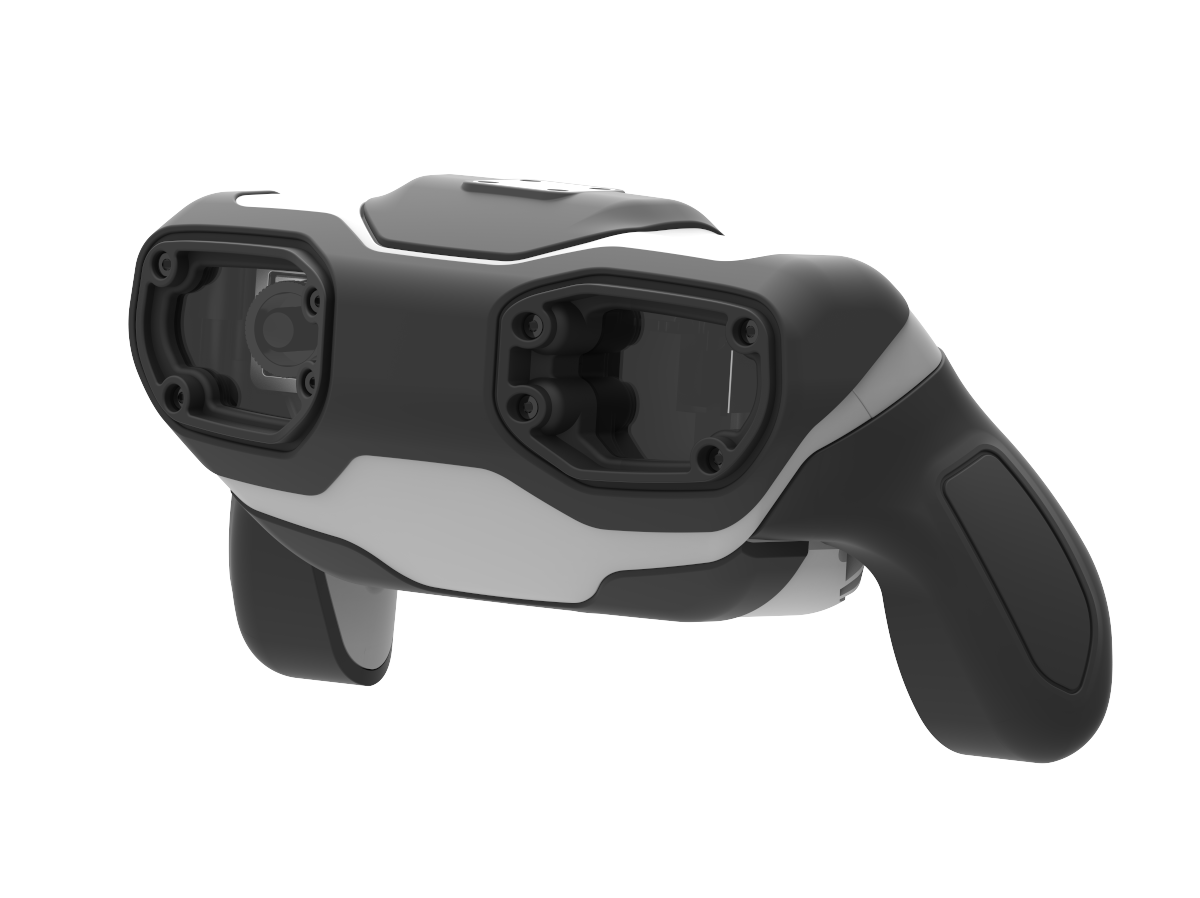

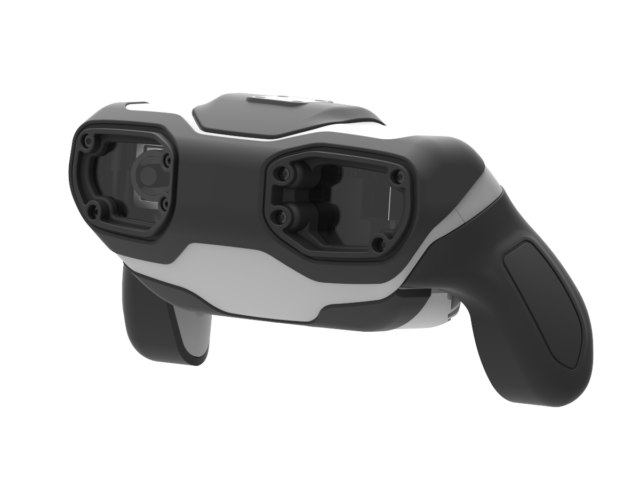

The 3DSL Rhino was developed with field inspection in mind. In addition to the imaging hardware and analysis software, field accessories are available to facilitate all damage assessment work and ensure correct measurements every time. Industry leading accuracy, precision, and resolution result in the highest quality measurements.
With an ingress protection level of 67 (IP67) and shock protection, this rugged Rhino can be dropped in water, dropped in mud, taken out in the Canadian winter or the Arabian summer and continue taking high quality 3D images.
The 3DSL NDT software suite, included with the 3DSL Rhino, enables complete assessment of infrastructure damage and produces damage reports that are compliant with industry standard recommendations.
Applications
Midstream transmission pipeline damage assessment
- ASME B31G, modified ASME B31G, RSTRENG
- ASME B31.8, ASME B31.4
- Export for finite element analysis (FEA)
Chemical and Petro-chemical plant inspection
- API 579 complaint
Aircraft inspection
- SRM complaint analysis
Bridge Inspection
- Metal loss on bolts and gusset plates
- Strain and deformation of gusset plates
Weld Inspection
Технические характеристики
Specs
| Specification Type | Specification |
| Data Interface | IEEE 802.3 1000baseT |
| Sensor Resolution | 644×484 |
| Sensor | CMOSIS CMV300 |
| Sensor Type | CMOS Progressive |
| Sensor Size | Type 1/3 |
| Cell Size | 7.4m |
| 3D Acquisition Rate | <,90ms |
| Max Frame rate at full resolution | 309 fps |
| A/D | 12 bit / 8 bit |
| On-boeard FIFP | 64 MB |
| System | 420 |
| Working Distance | 360mm (minimum) 14 (minimum) |
| Measurement Volume | 200mm x 150mm x 300mm 8 x 6 x 12 |
| Resolution (Lateral) | 0.4mm / 16 mils |
| Resolution (Depth) | 0.05mm / 2mils |
| Operating Temperature | -10C — +40C 14F — +104F |
| Power Requirements (DC) | 12VDC, AC/DC Adapter included: system may also be powered using a battery |
| Power Consumption (12V) | 25W |
| Mass | 2.4kg /5.3 lbs |
Dimensions (L x W x H in mm) | 279mm x 178 mm x 102mm 11 x 7 x 4 |
| Regulations | RoHS, Class A IP67 |
