SDA-820ZI-A Цифровой осциллограф LeCroy

Features:

Channel-Channel Isolation

• DC to 10 GHz: 50 dB (&gt, 315:1)
• 10 to 15 GHz: 46 dB (&gt, 200:1)
• 15 to 20 GHz: 40 dB (&gt, 100:1)

Vertical Resolution

• 8 bits up to 11 bits with enhanced resolution (ERES)

Sensitivity

• 50 Ω (ProLink): 2 mV–1 V/div, fully variable (2–9.9 mV/div via zoom)
• 50Ω (ProBus): 2 mV–1 V/div, fully variable
• 1 MΩ (ProBus): 2 mV–10 V/div, fully variable

DC Vertical Gain Accuracy

• ±1% F.S. (typical), offset at 0 V, ±1.5% F.S. (test limit), offset at 0 V (Gain Component of DC Accuracy)

Offset Range 50 Ω (ProLink)

• ±500 mV @ 2–100 mV/div
• ±4 V @ &gt, 100 mV/div–1 V/div

50 Ω (ProBus)

• ±750 mV @ 2–100 mV/div
• ±4 V @ &gt, 100 mV/div–1 V/div

1 MΩ:

• ±1V @ 2–140 mV/div
• ±10V @ 142mV–1.40V/div
• ±100V @ 1.42V–10V/div

DC Vertical Offset Accuracy

• ± (1.5% of offset setting + 1 mV) (test limit)

The Teledyne LeCroy SDA-820Zi-A is a 4 channel, 20 GHz Serial Data Analyzer. The SDA-820Zi-A»s four channel performance at 20 GHz is pristine with exceptional rise time, overshoot, total and random jitter noise floor, and electrical noise performance. SDAII Serial Data Analysis Software LeCroy»s SDAII software is optimized for fast eye diagram creation on long records, and deep insight of jitter pathologies with more parameters and analysis views to help you understand the root cause of high jitter.

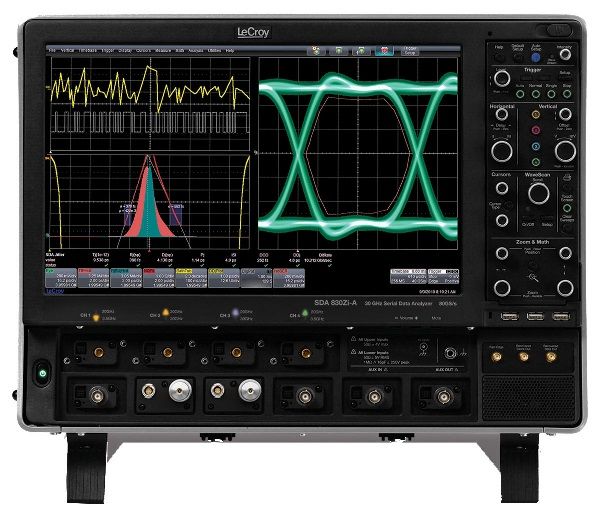

The image is for reference only. See product specification for details.
