Features:
- Bandwidth: 16 GHz
- 4 channel
- Sample Rate: 40 GS/s
- Record Length: 20 Mpts
- 15.3″ WXGA Color Display
- Display Eye Pattern,TIE, Bathtub Curve and Jitter Histogram on the screen at the same time
- Create Eye Patterns utilizing the full memory for maximum statistical significance
- 100 times faster Eye Diagram creation
- Gain insight with IsoBER and Mask Violation Locator tools
The SDA-816ZI is a 16 GHz, 4 channel digital oscilloscope from LeCroy. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
The SDA 8 Zi Series and SDA 816 Zi Serial Data Analyzers are based on the WaveMaster 8 Zi Series oscilloscope and are equipped with double the standard memory to capture more unit intervals in the eye diagram. They include an enhanced high-speed serial pattern trigger that operates on up to 80 bit patterns and at speeds up to 3.125 Gb/s. Whether debugging eye pattern or other compliance test failures, the SDA 8 Zi Series rapidly isolates the source of the problem in your design. – Display Eye Pattern, TIE, Bathtub Curve and Jitter Histogram on the screen at the same time – Create Eye Patterns utilizing the full memory for maximum statistical significance – 100 times faster Eye Diagram creation – Gain insight with IsoBER and Mask Violation Locator tools.

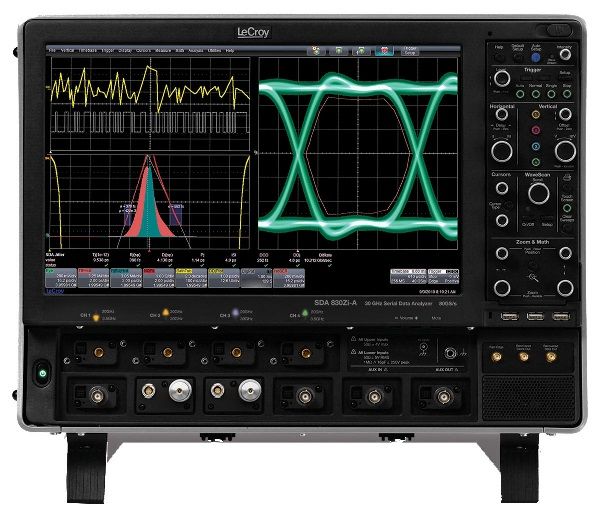

The image is for reference only. See product specification for details.
Технические характеристики
| Manufacturer | LeCroy |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 16 GHz |
| Record Length | 20 MPts |
| Sampling Rate | 40 GS/s |
