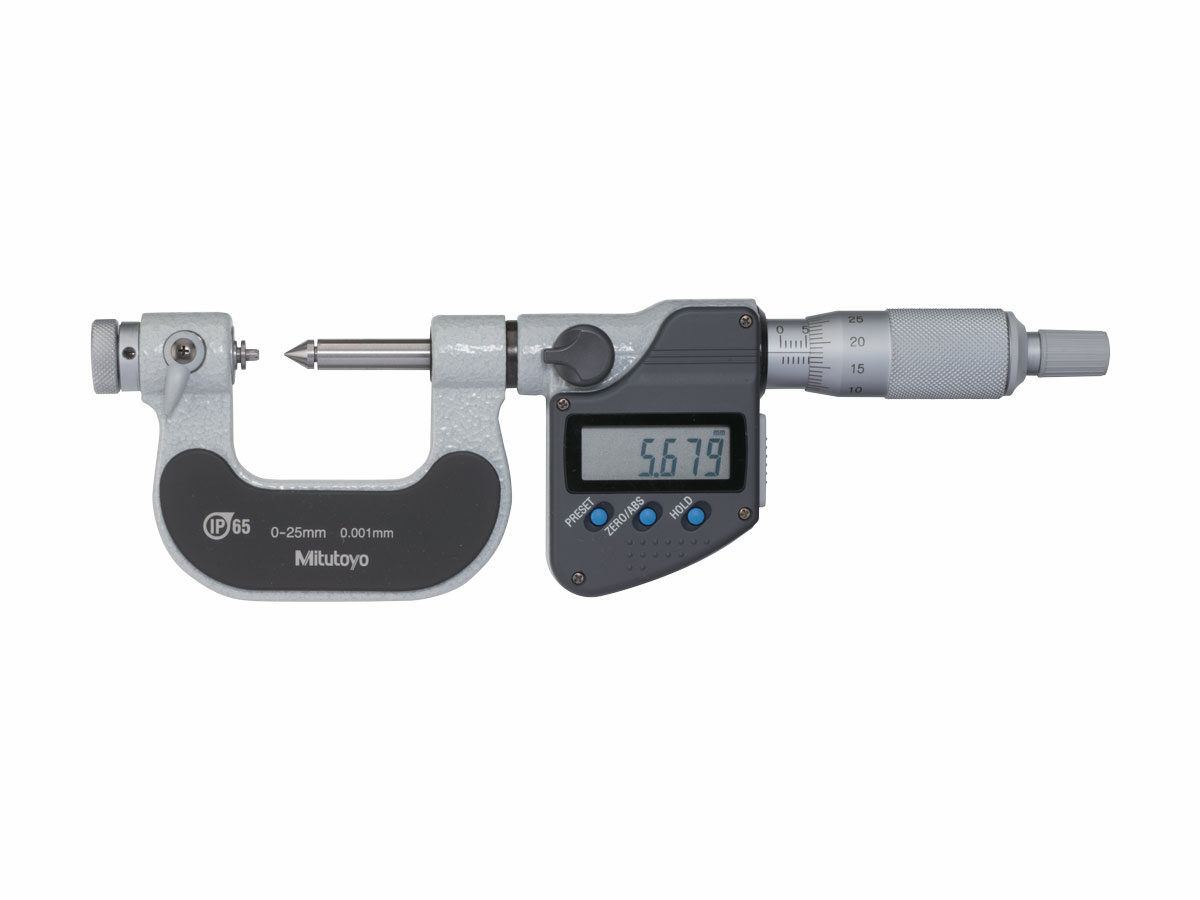

Screw Thread Micrometer-Interchangeable

The digital Mitutoyo screw thread micrometer with interchangeable anvil and spindle tips uses optional V-anvil and conical spindle inserts interchangeably to precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.

• Available in Metric and Inch/Metric models
• Optional interchangeable 60-degree and 55-degree V-anvil and conical spindle inserts are precision hardened, high-grade steel
• Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
• SPC output function allows for quick and easy data management in real time
• Functions include Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets, and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
• Frame has a non-slip finish for better grip in shop environments
• Includes a standard bar except for 0-25mm and 0-1” models
• Supplied in fitted plastic case
• IP65 protection permits use in environments exposed to cutting oil, dust, etc.**

**Anti-corrosion treatment is required after use
