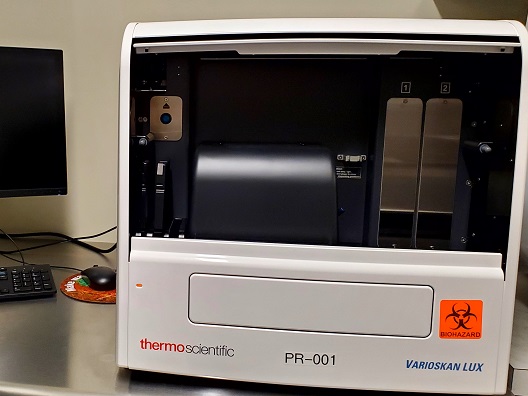

Считыватель микропланшетов Thermo Scientific Varioskan LUX

Description

Designed for bioscience researchers with a wide variety of needs, the Thermo Scientific Varioskan LUX multimode microplate reader comes equipped with a flexible range of measurement technologies including Absorbance, Fluorescence Intensity, Luminescence, AlphaScreen, and Time-Resolved Fluorescence. The instrument simplifies measurement setup with the automatic dynamic range selection, and its smart safety controls ease workflow and help avoid experimental errors. Varioskan LUX raises the bar for reliability and ease, with technology that works in researchers» best interest.

The Varioskan LUX multimode reader has received HTRF certification from Cisbio Bioassays and DLReady validation from Promega Corporation.

Specifications

• Compatibility: Robot
• Detector Type: Photomultiplier Tube (PMT)
• Incubator Temperature: Up to 45°C
• Interface: PC Software (Thermo Scientific SkanIt Software)
• Light Source: Xenon Flash Lamp
• Measurement Speed: 15 s for 96-well Plate, 45 s for 384-well Plate, 135 s for 1536-Well Plate (Minimum Times)
• Measurement Technology: Absorbance, Fluorescence Intensity, Luminescence
• Plate Type: 6 to 1536-well Plate (Absorbance 6 to 384-well Plate)
• Product Line: Varioskan
• Reading Options: Top and Bottom
• Read-out Range: 0 to 6 Abs
• Shaking: Orbital
• Software Type: SkanIt Software
• Spectral Scanning Speed: &lt,2.2 s/Well 400 to 500 nm, 1 Flash, 2 nm Step
• Wavelength Selection:
  • Absorbance & Spectral Scanning: Double Monochromator
  • Fluorescence Intensity: Double Excitation and Emission Monochromator
• Accuracy: 0.003 Abs or ±2%, at 200 to 399 nm (0 to 2 Abs), 0.003 Abs or ±1%, at 400 to 1000 nm (0 to 3 Abs)
• Depth (English): 23 in.
• Depth (Metric): 58 cm
• Dynamic Range:
  • Fluorescence intensity: top reading &gt, 6 decades, bottom reading &gt, 5.5 decades
  • Luminescence: &gt, 7 decades
• Height (English): 20 in.
• Height (Metric): 51 cm
• Hertz: 50/60 Hz
• Linearity:
  • 96-well plate: ±2% (0 to 4 Abs at 450 nm)
  • 384-well plate: ±2% (0 to 3 Abs at 450 nm)
• Measurement Type: Endpoint, Kinetic, Spectra, Multipoint, Kinetic Spectra
• No. of Dispensers: None
• Precision: SD &lt, 0.001 Abs or CV &lt, 0.5%, at 450 nm (0 to 3 Abs)
• Sensitivity:
  • Fluorescence intensity (top reading): &lt, 0.4 fmol fluorescein/well (black 384-well plate)
  • Fluorescence intensity (bottom reading): &lt, 4 fmol fluorescein/well, (clear bottom black 384 square well plate)
  • Luminescence: &lt, 7 amol ATP/well (white 384-well plate)
• Software Language Versions: English, German, French, Spanish, Portuguese, Italian, Japanese, Chinese, and Russian
• Voltage: 100/240 V
• Wavelength Range: Absorbance: 200 to 1000 nm, Fluorescence intensity: Excitation: 200 to 1000 nm, Emission: 270 to 840 nm
• Weight (English): 123 lb.
• Weight (Metric): 56 kg
• Width (English): 21 in.
• Width (Metric): 53 cm
