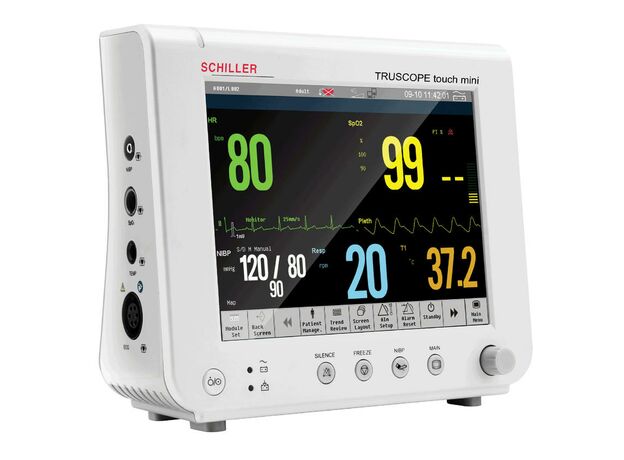

Schiller Truscope Mini, Multipara Cardiac Patient Monitor

Product Name- Schiller TruScope Mini Multipara Monitor

Brand — Schiller Healthcare

Model- TruScope Mini

The Schiller Truscope Mini features a bright 8′ TFT high-resolution colour display. It can perform standard patient monitor parameters such as 3/5 lead ECG, respiratory rate, NIBP, SpO2, Temperature, and has a number of other features, including a 240-hour trend review, patient ECG monitoring, Digital SPO2, rechargeable batteries and backup of 6 hrs.

Product Details BrandSchillerModelTruscope Touch MiniNumber Of Parameters8ParametersECG, Respiration, NIBP, Digital SpO2, NellcorSpO2, Temperature, Environmental & Recorder (Optional Modular Upgrade)Screen Size7 inchDisplay TypeTFT LCD touchscreen displayOptional ParametersWi-Fi connectivity to Central Nursing Station, RecorderNet Weight4 kg (With battery)AccessoriesPower cord — 1 no, ECG cable (5 lead) — 1 no, Disposable ECG electrodes — 10 nos, Reusable SpO2 sensor (adult) with extension cable — 1 no each full charge &gt, 210 minutes, Skin temperature probe — 1 no, Rectal temperature probe — 1 no., NIBP cuff (Adult & Pediatric) — 1 no. each, NIBP extension cable — 1 no, SD memory card (2 GB) — 1 no, Earth cable — 1 no, User manual — 1 no, Warranty card — 1 noAlarmsAuditory & visualBatteryRechargeable Lithium-ionCertificationCE 0123Additional Details Power VoltageAC 100-240 V 47/63 HzRecorder MethodThermal dot arrayPaper Width50 mmTracesMaximum 3 tracksPaper Speed12.5/25/50 (mm/sec)SafetyIEC 60601-1Operating Time2 hoursSpO2 Nellcor Measurement Range1 — 100&gt,#/td###SpO2 Nellcor Accuracy70-100%, ±2% 0-69% unspecifiedSpO2 Nellcor Pulse Rate Range25 — 250 bpmSpO2 Nellcor Pulse Rate Accuracy±1 or 1%, whichever is greaterECG Lead SelectionI, ll, lll, aVR, aVL, aVF,VGain Selection2.5 mm/mV, 5mm/mV, 10 mm/MV, 20mm/mV, 40 mm/mV, AutoSweep Speed12.5 mm/sec, 25 mm/sec, 50 mm/secAccuracy of ECG±1 bpmProtectionBreakdown voltage 4000 VAC 50/60 HZ: Defibrillator proofOperation Modes of ECGDiagnostic, MonitoringHeart Rate Range10 — 350 bpmST DetectionYesArrhythmia Analysis of ECGYesCMRRMonitor &gt,105 dB, OPS &gt,105 dBFrequency response (-3 dB)Monitor mode: 0.5 — 40 Hz, Surgery mode: 1 — 25 Hz, Diagnostic mode: 0.05 — 150 HzIndication of Electrode SeparationElectrode playback of CardiogramNIBP Method of NIBPAutomatic OscillometricOperating Modes of NIBPSingle (manual), Cycle (automatic), Rapid (continuous)Measurement Range of NIBPAdult: 10 — 270 mmHg, Pediatric: 10 — 235 mmHg, Neonate: 10 — 135 mmHgMeasurement TypeSystolic pressure, Diastolic pressure, Mean arterial pressure(MAPMeasurement UnitMmHg/KPa selectableIntervals for Auto Measurement Time1, 2, 3, 4, 5, 10, 15, 30, 60, 90 min, 2, 4, 8, 12 hours, 600 groups of NIBP data reviewRespiration Method of RespirationImpedanceMeasurement Range of Respiration0-150 rpmAlarm of RespirationUser-selectable upper & lower limitAlarm Range of Respiration0 — 120 bpmPeripheral Capillary Oxygen Saturation Measurement Range of SpO20-100&gt,#/td###Accuracy of SpO2±2% 70%-100%, ±3% 35%-69%, 0%-34%, unspecifiedPulse Rate Measurement Range of Pulse Rate25 — 250 bpmResolution of Pulse Rate1 bpmAccuracy of Pulse Rate±1 bpmTemperature Resolution of Temperature0.1°CChannel of TemperatureDual-channelMeasurement Range of Temperature0-50°CAccuracy of Temperature±1°C (25-50°C)Environment Operating Temperature0 — 50°CStorage Temperature-20 — 70°COperating Humidity10 to 95% (Non condensing)Storage Humidity0 to 93% (Non condensing)Operating Atmospheric Pressure860 hPa to 1060 hPaStorage Atmospheric Pressure500 hPa to 1060 hPaHeart Rate Heart Rate Accuracy±1 bpmTrend and Reviewing Trend Data72 hrs
