Specifications of Schiller Truscope III Patient Monitor Product Details BrandSchillerModelTruscope IIINumber Of Parameters9ParametersECG, Respiration, NIBP, Digital SpO2, NellcorSpO2, Masimo SpO2, Temperature, EtCO2 & IBP(Optional Modular Upgrade)Screen Size12.1 inchDisplay TypeTouchscreen colour TFT LCD displayOptional ParametersDual IBP, ETCO (Sidestream & Microstream) 2, SpO (Nellcor / Masimo) 2, Multigas (CO , O , N O & 5AA) 2 2 2, Temp probe, Recorder, Central station connectivity: Wi-FiNet Weight4.84 kg (Inclusive of 1 Li-ion battery)AccessoriesPower cord — 1 no, ECG cable (5 lead) — 1 no, Disposable ECG electrodes — 10 nos, Reusable SpO2 sensor (adult) with extension cable — 1 no each full charge >, 210 minutes, Skin temperature probe — 1 no, Rectal temperature probe — 1 no., NIBP cuff (Adult & Pediatric) — 1 no. each, NIBP extension cable — 1 no, SD memory card (2 GB) — 1 no, Earth cable — 1 no, User manual — 1 no, Warranty card — 1 noWaveforms10AlarmsAuditory & visualBatteryRechargeable Lithium-ionCertificationCE 0123 according to Annexe II 93/42/EECDimension34 x 28 x 14.8 cmAdditional Details Resolution800×600 pixelsPower VoltageAC 100-240 V 50/60 Hz, 12 V D.C inputRecorder MethodThermal dot arrayPaper Width50 mmTracesMaximum 3 tracksPaper Speed12.5/25/50 (mm/sec)SafetyIEC 60601-1 and IEC 60601-1-2Operating Time240 min (2 batteries 480 miu) (2nd battery optional)Charge Time6 hours (2 batteries, 12 hoursSpO2 Nellcor Measurement Range0 — 100>,#/td###SpO2 Nellcor Accuracy±2% 70-100%, 0-69% unspecifiedSpO2 Nellcor Pulse Rate Range20 to 250 bpmSpO2 Nellcor Pulse Rate Accuracy±1 or 1%, whichever is greaterSpO2 Masima Measurement Range0 — 100>,#/td###SpO2 Masima Accuracy±2% 70-100% (Adult/pediatric), ±3% 70-100% (Neonate), 0-69% unspecifiedSpO2 Masima Pulse Rate Range20 to 300 bpmSpO2 Masima Pulse Rate Accuracy±3 bpm (Non-motion conditions), ±5 bpm (Motion conditions)ECG Input Impedance>, 5.0 MΩLead SelectionI, ll, lll, aVR, aVL, aVF,VGain SelectionAuto, 0.25x, 0.5x, 1x, 2x, 4xSweep Speed6.25mm/sec, 12.5 mm/sec, 25 mm/sec, 50 mm/secAccuracy of ECG±1 bpm or ±1% whichever is greaterOperation Modes of ECGDiagnostic, Monitor, SurgeryHeart Rate RangeAdult:10-300 bpm, Pediatric and Neonate: 10-350 bpmST DetectionYesArrhythmia Analysis of ECGYesCMRRMonitor >,105 dB, Surgery >,105 dB, Diagnostic >,89Indication of Electrode SeparationEvery electrode exclusive RLNIBP Method of NIBPAutomatic OscillometricOperating Modes of NIBPSingle (manual), Cycle (automatic), STAT (continuous)Measurement Range of NIBPAdult: 10 — 270 mmHg, Pediatric: 10 — 235 mmHg, Neonate: 10 — 135 mmHgMeasurement TypeSystolic pressure, Diastolic pressure, Mean arterial pressure(MAPMeasurement UnitMmHg/KPa selectableIntervals for Auto Measurement Time1,2,3,4,5,10,15,30,45,60,90,120,240,480 minute 1000 groups NIBP data reviewRespiration Method of RespirationThoracic ImpedanceMeasurement Range of Respiration0-150 rpmAlarm Range of Respiration10 — 60 secGainx0.25, x1, x2, x4Respiration Sweep Speed6.25 mm/sec, 12.5 mm/sec, 25 mm/secRespiration Accuracy±2 rpmPeripheral Capillary Oxygen Saturation Measurement Range of SpO20-100>,#/td###Accuracy of SpO2±2% 70%-100%, 0%-69%, unspecifiedPulse Rate Measurement Range of Pulse Rate20 – 250 bpmAccuracy of Pulse Rate±1 or 1%, whichever is greaterTemperature Resolution of Temperature0.1°CMeasurement Range of Temperature0-50°CAccuracy of Temperature±0.1°CAlarm range0-50°CIBP Channel of IBPDual-channelPressure Transducer Sensitivity5 V/V/mmHg, ±2>,#/td###Transducer SitesART / PA / CVP / LAP / RAP / ICP/BD/UTAH /EDWARDMeasurement Range of IBP-50 — 350 mmHgIBP Resolution1 mmHgIBP Accuracy±4 mmHg or 4 % of the reading whichever is greateEnd Tidal Carbon Dioxide Method of EtCO2Sidestream, Microstream/ MainstreamMeasurement Range of EtCO2Sidestream: 0.0-99.6 mmHg, Microstream/ Mainstream: 0-150 mmHgResolution of EtCO21 mmHgAccuracy of EtCO2Sidestream: <,5.0%, ±0.3% (±2.0 mmHg), 5.0%, <,±10% of the reading, Microstream: 0.0-40.0 mmHg. ±2% of the reading, 41-71 mmHg. ±5%, of the reading, 71-100 mmHg. ±8% of the reading, 101-150mmHg. ±10% of the readingEnvironment Operating Temperature5 — 40°CStorage Temperature-20 — +55°COperating Humidity15 to 85% (Non condensing)Storage Humidity10 to 93% (Non condensing)Operating Atmospheric Pressure700 hPa to 1060 hPaStorage Atmospheric Pressure500 hPa to 1060 hPaHeart Rate Heart Rate Accuracy±1 or ±1 bpmTrend and Reviewing Trend Data168 hoursApplications
- Operation room & ICU
FEATURES
- Up to 7 lead ECG display
- Total 10 waveforms display simultaneously
- ST & Arrhythmia analysis
- 168 hours tabular and graphic trends & data storage
- Drug dosage, Hemodynamic, Nephridium, Ventilation & Oxygenation calculation software
- OXYCRG software
- Pacemaker detection facility.
- Video Output (VGA)
- Recorder
- Central station connectivity: Wired and Wi-Fi
- This is a Modular touchscreen patient monitor that offers a wide range of standard and optional parameters.
- 12.1” touch screen multi-utility, touchscreen Patient Monitor

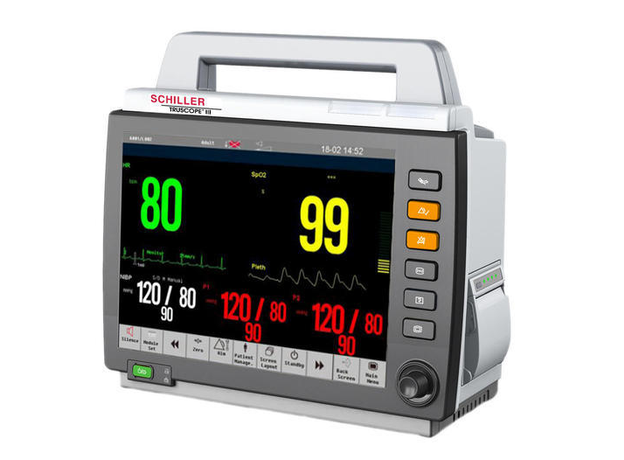

Product Photos
Estimated Delivery: 5 To 7 Days Warranty :
- 1 Years
Product Specifications Color: white Machine Operation :
- Touch Screen
Brand/Manufacturer Brand: Schiller Weight & Dimensions Product Weight: 4.8Kg Display and User Interface Screen Size :
- 12.1 Inch
