Description

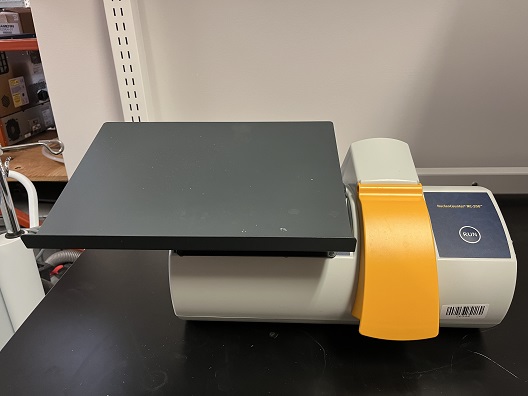

The NucleoCounter® NC-200™ automated cell counter is a high-precision instrument utilizing state-of-the-art image cytometry. It counts suspension cells, aggregated cells, CAR-T cells, stem cells and cells on microcarriers.
Specifications
- Cell type(s): Mammalian cells, including cell lines, leukopaks, PBMCs, whole blood, MSCs, T-cells, aggregated cells, & microcarriers
- Capacity (Analysis time): 50 seconds (one step), 120 seconds (two steps)
- Analysis volume: 1.4 μl
- Optimal range: 5×104 to 5×106 cells/ml (for counting)
- Staining dye(s): Acridine orange (AO), DAPI
- Loading volume: 60 μl
- Excitation: 2 LED light sources peaking at 365 nm and 505 nm, dark field light
- Emission (nm): A single dual-band emission filter: 410 – 460 nm and 540 – 650 nm
- Optics: Lens with x1.3 magnification, 1/2.” CMOS camera
- Size (W × H × D): 40 × 23 × 25 cm
- Weight: 4.5 kg (9.9 lb)
- Supply Voltage: 24VDC (100-240V ~ 50-60Hz)
