Description

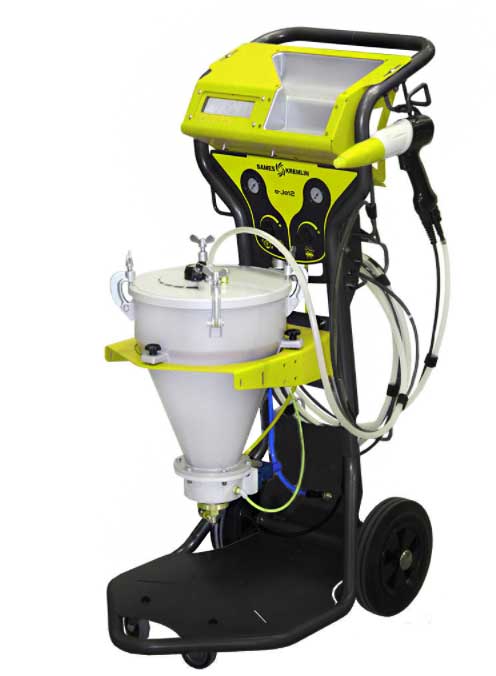

The Sames Kremlin E-Jet 2 NDT is for dry powder developer applications as part of the penetrant inspection process. The E-Jet 2 NDT System is a stable and compact option in the aerospace industry where developer is widely used. A CSV 230 pressure pot applies fine homogeneous layers with a low and consistent flow for optimal coverage.
The E-Jet 2 NDT features a fluidized hopper, making it perfect for medium or large scale productions not suited for the vibration technique. This low-maintenance penetrant sprayer optimizes application time and the air pumped at a regular flow provides superior precision. Keep organized with the convenient cable and hose support while wheeling the system to the application site.
Технические характеристики
Specs
| Model | SK-910020548 |
| Maximum Fluid Outlet | Value: 200 (6.76) Units: cc/min (oz/min) |
| Maximum Air Pressure | Value: 7 (102) Units: bar (psi) |
| Weight | 660 g (23.28 oz) |
| Cart Dimensions (H x L x W) | 1220 x 480 x 770 mm |
| Maximum Dew Point at 6 Bar | Class 4, i.e. +3C (38F) |
| Maximum Particle-size of Solid Pollutants | Class 3, i.e. 5 m |
| Maximum Concentration of Solid Pollutants | Class 3, i.e. 5 mg/m0 3 * |
| Maximum Oil Concentration | Class 1, i.e. 0.01 mg/m0 3 * |
| Equipment Air-supply Pressure | 7 bar +/- 1 bar |
*Air flow rate values are given for a temperature of 20C (68 F) at atmospheric pressure of 1,013 mbar.
