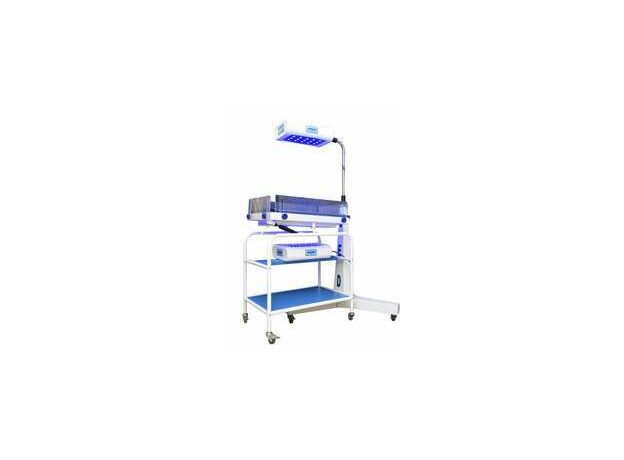

SUNSHINE PHOTOTHERAPY UNIT (MODEL: CFL DOUBLE SURFACE):-
Jaundice can present a severe issue in the newborn child, i.e. one month’s birth, as elevated levels of bilirubin can permanently harm the brain. Indirect bilirubin, which is not water-soluble, can be decomposed into a harmless metabolic that is water-soluble, does not cross the blood-brain barrier, and is quickly excreted in bile and urine and therefore does not accumulate.
About CFL Phototherapy:
- The CFL Phototherapy Unit occupies very little bedside room to make observation easier.
- The system is portable, installed on 4 castors i.e. 2 brake and 2 brake-free
- The Chokes are fitted at the base to decrease the heat generation in the tube unit thus giving added protection to the unit.
Compatibility:
The tube unit can be adjusted up/down by the mechanism provided in the pillar. Protection is provided against free fall of the unit by adding a big screw at the back, thus making it compatible to fit over an incubator or baby cot etc.
Heat Dissipation:
A fan is provided at the top cover for efficient heat dissipation with concealed wiring inside the unit.
Optional Accessories:
- I.V. Stand (adjustable).
- Digital hour meter with the dual-display of hours i.e. one for the usage of the total tube & the other for individual baby usage with reset facility.
- Automatic voltage corrector with high & low voltage cut off.
Parameters:
- LED 9/12/15 hi power LEDs(blue)(white LED optional)
- Irradiance >,42 mw/cm2/nm at 30cm
- Light source lifetime minimum 25,000hrs.
- Less than 10% change in illumination after 25,000hrs(irradiance)
- Wavelength 420-480 nm
- Variation in intensity for 6 hours<,10%
- Effective area 50 cm X 30 cm.
Electrical:
Input voltage 100-240 V, 50-60Hz
Technical Specification of S.S. Technomed CFL Double Surface Phototherapy Machine:
Front18” (L)x 8.5” (w) x3”(H)Height (adjustable)Min: 1230 mm Max: 1600mmLength800mmWidth720mmBackside18” x 8.5” x 3”
Baby Bassinet:
- Clear Collapsible fold-down side panels
- Baby Tray with Transparent base for Undersurface Phototherapy usage.
- Lower Shelf
- Movable Castors
- Undersurface LED Phototherapy
- Same as the overhead placed under the bassinet.
