Ручные зонды серии L, полупроводниковые пластины 6 футов

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: TFM110-150 TME арт.: TFM110-150

Продавец

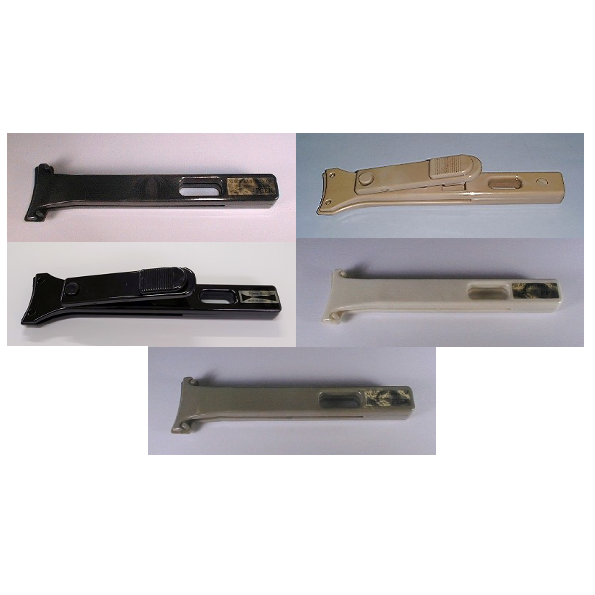

Fluoro Mechanic»s manual wands are small tools for gripping and holding delicate miniature objects, especially silicon wafers, securely without hand contact to avoid contamination or damage. They are ideal for use in electronics, jewellery making, camera & watch repair, computer & model assembly and picking up contact lenses.

Specifications:

Designed to handle 6″ semiconductor wafers.
Withstand up to 130C continuously
No glue or metal parts
Less force is required to handle wafers for wands with lockable lever
Available with wafer edge in PEEK (Polyetheretherketon), PPS (Polyphenylene Sulfide) or conductive PEEK (Polyetheretherketon)

Product Size Wafer Edge FLUM100-150L

Length: 185mm Weight: 71g

3.0mm top, 6.0mm bottom, lockable lever
Material: PEEK

TFE100-150L

Length: 185mm Weight: 72g

3.0mm top, 6.0mm bottom, lockable lever
Material: Conductive PEEK
FLUM100-150

Length: 147mm Weight: 31g

5.6mm top, 8.5mm bottom
Material: PEEK
TFM110-150

Length: 147mm Weight: 33g

5.6mm top, 8.5mm bottom
Material: PPS

TFE100-150

Length: 147mm Weight: 32g

5.6mm top, 8.5mm bottom
Material: Conductive PEEK

Технические характеристики

Product
