Ручные зонды серии L, 8-дюймовые полупроводниковые пластины

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: FLUE100-200 TME арт.: FLUE100-200

Продавец

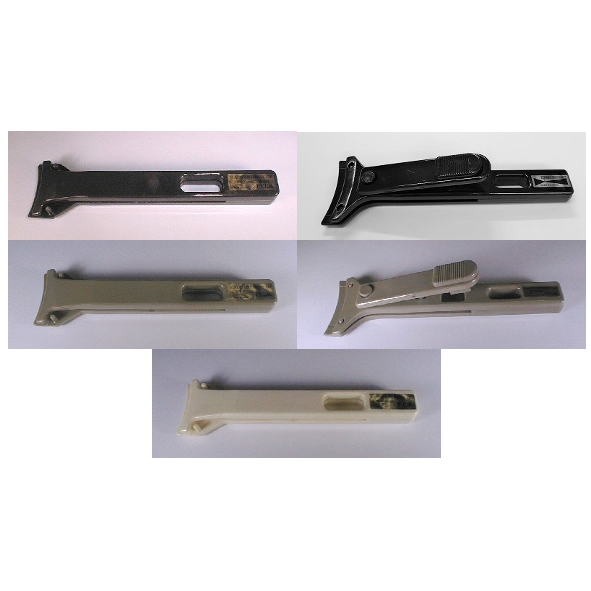

Fluoro Mechanic»s manual wands are small tools for gripping and holding delicate miniature objects, especially silicon wafers, securely without hand contact to avoid contamination or damage. They are ideal for use in electronics, jewellery making, camera & watch repair, computer & model assembly and picking up contact lenses.

Specifications:

Designed to handle 8″ semiconductor wafers
Withstand up to 130C continuously
No glue or metal parts
Less force is required to handle wafers for wands with lockable lever
Available with wafer edge in PEEK (Polyetheretherketon), PPS (Polyphenylene Sulfide) or conductive PEEK (Polyetheretherketon)

Product Size Wafer Edge FLUM100-200L

Length: 180mm Weight: 72g

3.0mm top, 10.0mm bottom, lockable lever
Material: PEEK

TFE100-200L

Length: 180mm Weight: 73g

3.0mm top, 10.0mm bottom, lockable lever
Material: Conductive PEEK
FLUM100-200

Length: 147mm Weight: 32g

8.0mm top, 11.9mm bottom
Material: PEEK
TFM110-200

Length: 147mm Weight: 33g

8.0mm top, 11.9mm bottom
Material: PPS

FLUE100-200

Length: 147mm Weight: 33g

8.0mm top, 11.9mm bottom
Material: Conductive PEEK
