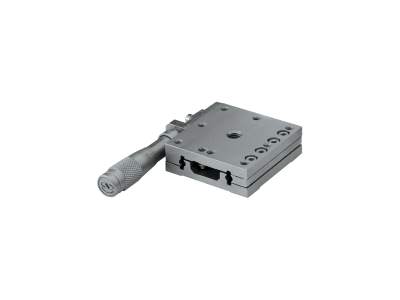

The M-SDS40 Metric Linear Translation Stage incorporates maximum performance and 16mm travel into a 40 x 40 x 13 mm footprint. Especially designed for industrial OEM system integration, the stainless steel construction features higher rigidity, superior clean room acceptability, and better long-term stability than aluminum stages. Our novel manufacturing methods, based on fewer machined parts, allows for a low-profile design with higher performance. The M-SDS40 has a 67 N load capacity and can be directly stacked into an XY-configuration, and an XYZ assembly can be built using the available 90° angle brackets. For mounting M-SDS40 stages to optical tables with a 25 mm grid or to other larger scale components, use our slotted base plates. For rotational movement, these stages are compatible with the RS Series Rotation Stages and GON Series Goniometers.
Технические характеристики
- Axes of Travel X
- Maximum Stage Travel 16 mm
- Centered Normal Load Capacity 60 N
- Vertical Axial Load Capacity 30 N
- Graduations 20 m
- Sensitivity 1 m
- Angular Deviation Pitch:
Yaw: - Material Stainless Steel
- Bearings Single-Row Ball Bearings
- Drive Location Side drive
- Platform Size 40 x 40 mm
- Height 13 mm
- Thread Type M3 and M6
- Recommended BM Micrometer BM11.16 Included
