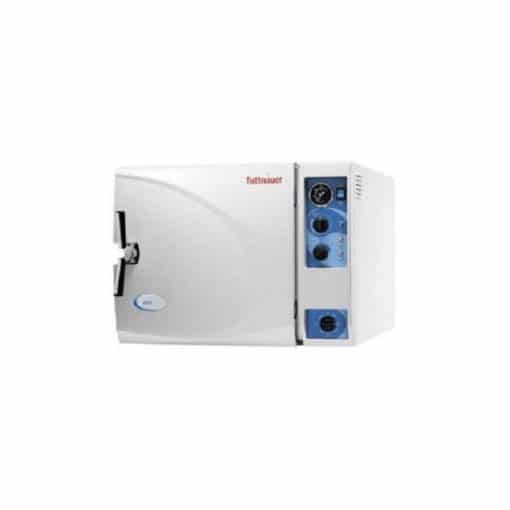

Product Description Refurbished Tuttnauer 3870M Manual Autoclave, Current Model WARRANTY: 12 months parts only Our largest manual table top autoclave. Perfect for multi-doctor practices, clinics or surgery centers. 15 x 30 chamber accommodates longer instruments or a large number of small instruments. Capacity for 15 full size IMS cassettes. Features Automatic shut off at the end of both the sterilization and dry cycles. A long life electro polished chamber and door. Double safety locking device prevents door from opening while chamber is pressurized. Drain valve is located on the front, allowing for quick and easy draining of water reservoir. Dual safety thermostat to protect against overheating. International certifications Technical Specifications Chamber Size: 15 x 30 Volume: 22 gal (85 L) Dimensions (L x W x H): 34.5 x 26 x 20.6 Standard Cassette Capacity: 15 full Trays: 2 Tray Size (L x W x H): 26.6 x 11.3 x 1 Standard Unwrapped Cycle Time: Cold: 32 Min / Hot: 23 min Voltage: 230V Frequency: 50/60 Power: 3000W Current: 13.6A Shipping Weight: 209 lbs Total Sterilization Time (does nto include drying) Cold Start Hot Start Description STE. Temp Unwrapped Instruments, open glass or metal containers 273 F 21 min 11 min Wrapped Instruments, standard cassettes, rubber tubing 273 F 34 min 18 min Packs 273 F 45 min 35 min Any items where a lower sterilization temperature is required 250 F 60 min 50 min
Технические характеристики
Technical Specifications
- Chamber Size: 15′ x 30′
- Volume: 22 gal (85 L)
- Dimensions (L x W x H): 34.5′ x 26′ x 20.6′
- Standard Cassette Capacity: 15 full
- Trays: 2
- Tray Size (L x W x H): 26.6′ x 11.3′ x 1′
- Standard Unwrapped Cycle Time: Cold: 32 Min / Hot: 23 min
- Voltage: 230V
- Frequency: 50/60
- Power: 3000W
- Current: 13.6A
- Shipping Weight: 209 lbs
| Total Sterilization Time (does nto include drying) | Cold Start | Hot Start | |
| Description | STE. Temp | ||
| Unwrapped Instruments, open glass or metal containers | 273° F | 21 min | 11 min |
| Wrapped Instruments, standard cassettes, rubber tubing | 273° F | 34 min | 18 min |
| Packs | 273° F | 45 min | 35 min |
| Any items where a lower sterilization temperature is required | 250° F | 60 min | 50 min |
