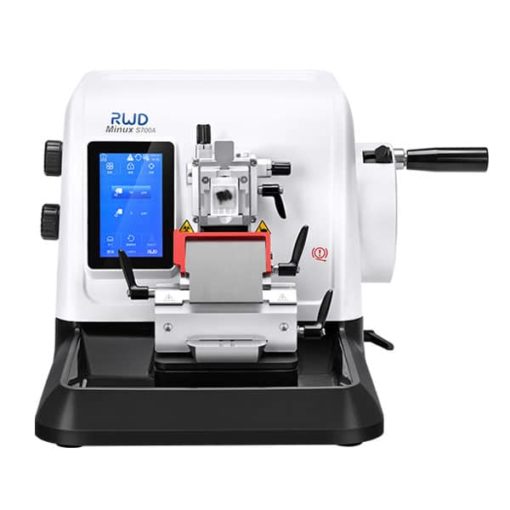

Ротационный микротом Minux® S700

Product Description #gap-758264007 { padding-top: 30px, } Built upon market-leading microtome design, S700 Paraffin Rotary Microtome enables you to cut sections precisely, safely and superior easy-operationally. It displays extraordinary ergonomic characteristics for comfortable operation. It is a semi-automatic model, more in line with your slicing habits. If working with delicate specimens (example being brain samples) the system will provide reproducible, thin, serial sections of maximum quality time and again. Unique side specimen knob and visual pointer design make specimen advance and retraction more precision. Handwheel double lock system and knife ejector and guard enhance safety. Application field: Histopathology/Anatomical Pathology Accurate | Safe | Intelligent | Convenient #text-3237672263 { text-align: center, } #gap-1544396519 { padding-top: 30px, } Techinal Specifications Features & Benefits Semi-Auto vs. Fully-Auto Model information Technical Parameters Accurate Precise sampling: Cross roller bearings and Spindle imported from Germany, combined with a five-phase high-resolution Stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure slice quality. Accurate positioning: Patented technology pointer identification, the sample angle can be adjusted visually, and the positioning is more accurate, the knife holder has a small lateral displacement and high accuracy. The base has a scale, which is convenient for the knife holder to locate and improve the quality of slices. Safety Operator safety: The handwheel dual locking system comes with a lock prompt sound, and is equipped with a knife ejector and a knife guard, so that the user can safely replace the sample and blade. Intelligent Information tracking: 5-inch touch screen, history recording system, easy to trace back information and quickly solve problems Convenient Convenient operation: German military-grade side injection knob conforms to ergonomic design, and the operation is more comfortable and coordinated. Convenient maintenance: special material waste tank, non-wax, easy to clean #text-2977747255 { font-size: 0.8rem, text-align: left, } #image_2069403855 { width: 94%, } Model S700 Semi-Auto S700A Fully-Auto Section thickness setting range: 0.50 100 m Trimming section thickness setting range: 1 800 m Electric sectioning speed: 0-1800m Specimen retraction: 0-250m Specimen feed: 28mm Vertical stroke: 70mm Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8 Maximum specimen size&#65306,55*50*30mm W x D x H: 470mm553mm305mm Machine weight 28kg 36.4kg Fully motorized and semi- motorized mode switch Emergency stop button Cut window function Slice speed selection Multiple slice modes Pedals #text-2354374157 { font-size: 1rem, line-height: 1.75, text-align: center, } Standard accessories: Rotary Microtome S700 1 Tool holder assembly S700-F2 1 Universal clamp S700-F3 1 Tool Kit S700-F1 1 Easy-clean waste tray S700-F5 1 Microtome Blades,50 PCS. For rotary microtome and cryostats use. PB-1 Pro 1 Power cable 1 User manual 1 Dust cover 1 Optional accessories: Standard clamp S700-F4 1 Blade holder assembly S700-F7 1 Blade holder upper bracket S700-F9 1 Antistatic waste tray S700-F6 1 #text-1797873797 { text-align: center, } #image_1108238620 { width: 56%, } Semi-automatic operation, motorized injection, manual sectioning. Section thickness range&#65306,0.5 100 m 0.5 5.0 m in 0.5m increments 5- 20m in 1m increments 20 30 m in 2m increments 30- 60 m in 5m increments 60- 100m in 10m increments Trimming section thickness range&#65306,1 800 m 1- 10m in 1m increments 10- 20m in 2m increments 20- 50m in 5m increments 50- 100m in 10m increments 100- 800m in 50m increments #text-2314317271 { text-align: center, } #image_1597238214 { width: 100%, } Specimen retraction&#65306,0-250&mu,m ajustable Specimen Feed&#65306,28mm Vertical Stroke&#65306,70mm Maximum sample size&#65306,standard specimen clamp&#65292,555030mm Specimen orientation&#65306,X axis/Y axis8&#65292,Z axis 360 Horizontal feed speed&#65306,1800m/s Sample positioning function,patented visual pointer identification,keep samples at the same angle and achieve accurate sample positioning. The 5-inch touch screen is easy to operate. Stylish and simple operation interface,easy to learn and understand. The side sampling knob is ergonomically designed to make operation more comfortable. The half-knife repair function simplifies the operation process, save time and effort. Handwheel dual lock system, lock the handwheel at any position. Knife guarding and retracting device, emergency stop button, multiply enhance the protection of the operator. Sample position memory function, one-click reset, improve sectioning efficiency. Audible and visual alarm when the horizontal sampling stroke is 1mm remaining. The historical record system can query the equipment usage and facilitate information tracking. #gap-1570789863 { padding-top: 30px, } Testimonials «The slices are flat and smooth, with uniform thickness and good continuity.» #text-2474669086 { text-align: center, color: rgb(37, 104, 179), } #text-2474669086 > * { color: rgb(37, 104, 179), } #gap-612734885 { padding-top: 12px, } America Northwestern University #text-1586212806 { font-size: 1rem, line-height: 1, text-align: center, } «This instrument displays extraordinary ergonomic characteristics for comfortable operation while maintaining reproducible precision during sectioning.» #text-1934775674 { font-size: 1rem, color: rgb(37, 104, 179), } #text-1934775674 > * { color: rgb(37, 104, 179), } #gap-292982492 { padding-top: 12px, } Northwestern University Feinberg School of Medicine #text-712118168 { font-size: 1rem, line-height: 1, text-align: center, } «Easy to operate and get started quickly. Online fast response and reliable service» #text-1017195041 { color: rgb(37, 104, 179), } #text-1017195041 > * { color: rgb(37, 104, 179), } #gap-617467579 { padding-top: 12px, } Tumor Hospital of Guangzhou Medical University #text-3514502096 { font-size: 1rem, line-height: 1, text-align: center, } #row-547575703 > .col > .col-inner { padding: 30px 30px 30px 30px, } #gap-1326553360 { padding-top: 30px, }

Технические характеристики

Technical Specifications

Techinal Specifications

• Features & Benefits
• Semi-Auto vs. Fully-Auto
• Model information
• Technical Parameters

Accurate

• Precise sampling: Cross roller bearings and Spindle imported from Germany, combined with a five-phase high-resolution Stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure slice quality.
• Accurate positioning: Patented technology pointer identification, the sample angle can be adjusted visually, and the positioning is more accurate, the knife holder has a small lateral displacement and high accuracy. The base has a scale, which is convenient for the knife holder to locate and improve the quality of slices.

Safety

• Operator safety: The handwheel dual locking system comes with a lock prompt sound, and is equipped with a knife ejector and a knife guard, so that the user can safely replace the sample and blade.

Intelligent

• Information tracking: 5-inch touch screen, history recording system, easy to trace back information and quickly solve problems

Convenient

• Convenient operation: German military-grade side injection knob conforms to ergonomic design, and the operation is more comfortable and coordinated.
• Convenient maintenance: special material waste tank, non-wax, easy to clean

#text-2953816185 { font-size: 0.8rem, text-align: left, } #image_1769264746 { width: 94%, }

#text-1211305817 { font-size: 1rem, line-height: 1.75, text-align: center, }

Standard accessories:

Optional accessories:

#text-2809621887 { text-align: center, } #image_1607204092 { width: 56%, }

※Semi-automatic operation, motorized injection, manual sectioning.

Section thickness range：0.5 – 100 µm

• 0.5 – 5.0 µm in 0.5µm increments
• 5- 20µm in 1µm increments
• 20 – 30 µm in 2µm increments
• 30- 60 µm in 5µm increments
• 60- 100µm in 10µm increments

Trimming section thickness range：1 – 800 µm

• 1- 10µm in 1µm increments
• 10- 20µm in 2µm increments
• 20- 50µm in 5µm increments
• 50- 100µm in 10µm increments
• 100- 800µm in 50µm increments

#text-1856803852 { text-align: center, } #image_1231433384 { width: 100%, }

Specimen retraction：0-250μm ajustable

Specimen Feed：28mm

Vertical Stroke：70mm

Maximum sample size：standard specimen clamp，55×50×30mm

Specimen orientation：X axis/Y axis8°，Z axis 360°

Horizontal feed speed：1800µm/s

※Sample positioning function,patented visual pointer identification,keep samples at the same angle and achieve accurate sample positioning.

※The 5-inch touch screen is easy to operate. Stylish and simple operation interface,easy to learn and understand.

※The side sampling knob is ergonomically designed to make operation more comfortable. The half-knife repair function simplifies the operation process, save time and effort.

Handwheel dual lock system, lock the handwheel at any position. Knife guarding and retracting device, emergency stop button, multiply enhance the protection of the operator.

Sample position memory function, one-click reset, improve sectioning efficiency.

Audible and visual alarm when the horizontal sampling stroke is 1mm remaining.

The historical record system can query the equipment usage and facilitate information tracking.
