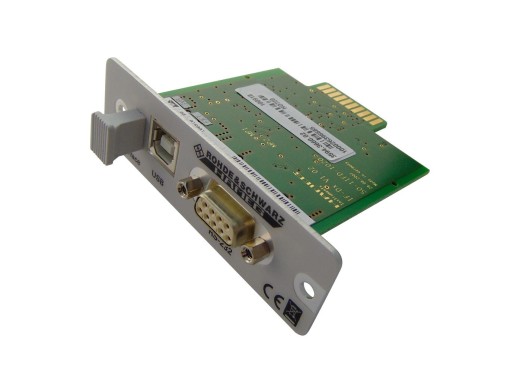

The Rohde & Schwarz HO720 dual interface card features a USB 2.0 Type B male connector and a RS-232 D-Sub female connector as output. It is also possible to establish a physical USB connection and to control the instrument via a virtual COM port. Both interfaces enable serial data transfer.
This card can be installed in various Rohde & Schwarz products, such as:
- HM1008-2
- HM1500-2
- HM1508-2
- HM2005-2
- HM2008
- HM5530
- HMF series ( HMF2525 , HMF2550 )
- HMO series
- HMP series (HMP2020 , HMP2030 , HMP4030 ,HMP4040 )
- HMS series
Take note! Only one of either USB or RS232 output connectors can be activated, not both at the same time.
