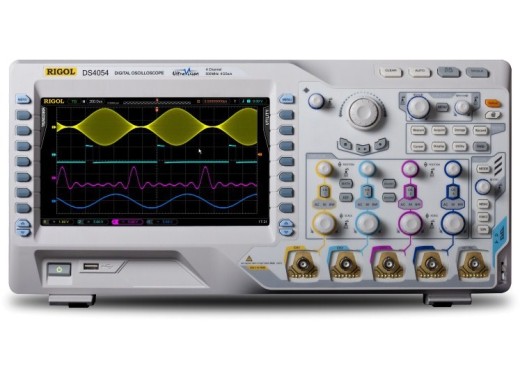

Scopes in the DS4000 series offer great value for money. A large colour grading display, deep memory and high capture rate are only some of the excellent specs of the devices. A host of connections offer high diversity in application.
Connections
The scopes can be connected to a computer via USB and LAN to allow for complete control from a pc. Support for programming or LabView is integrated. Furthermore the scope can be connected to a monitor directly through a VGA connector.
Measurements
The scopes offer broad possibilities for measurement and analysis. A large number of frames can be stored in the memory for replay and analysis. Apart from that the scope offers a very low noise floor allowing for highly accurate measurements for small signals. With a variety of triggering options the signals can be displayed easily.
Dual-display
Dual display functionality allows for both a overview and a detailed view of the signal to be displayed simultaneously.
Models
The models starting with a 2 feature 2 channels whereas the models ending in a 4 are 4 channel scopes.
ModelDS4012
DS4014DS4022
DS4024DS4032
DS4034DS4052
DS4054 Analogue bandwidth 100 MHz 200 MHz 350 MHz 500 MHz Rise time 3.5 ns 1.8 ns 1 ns 700 ps Price (2 channel) 1958.68 €1,958.68 Excl. VAT 2747.93 €2,747.93 Excl. VAT 4615.7 €4,615.70 Excl. VAT 6483.47 €6,483.47 Excl. VAT Price (4 channel) 2157.02 €2,157.02 Excl. VAT 2842.98 €2,842.98 Excl. VAT 4809.92 €4,809.92 Excl. VAT 6975.21 €6,975.21 Excl. VAT Specifications Sample Rate 4 GSa/s (interleaved), 2 GSa/s (non-interleaved) Memory 140 Mpts Input impedance 1 MΩ // 15 pF Horizontal scale 1 ns/div — 1000 s/div (500 MHz model) Vertical resolution 1 mV/div — 5 V/div A/D converter 8 bits resolution Maximal voltage 300V RMS, CAT I Waveform capture rate tot 110.000 wfm/s Connectivity USB 2.0 (2xHost/device), LAN, VGA, 10 MHz in/output, AUX Display 9′ TFT, 800×480 pixels Weight (without box) 4.8 Kg Dimensions 440 x 130 x 218 mm (LxBxH)
For more information the datasheet or the manual can be consulted.
Accessories
All oscilloscopes in this series come bundled with:
- Quick start-guide
- Calibration certificate
- Cover for the front
- Power cord
- Probes, 1 per channel, 500/350 MHz depending on model
- USB cable
Options
All options are software options that can be added at a later point, or ordered with the device All options are free for a limited time. A combined value of about €2.800 (ex VAT) worth of options are now free.
- RS232/UART decoder option.
- SPI-DS4 decoder option.
- CAN-bus decoder option for automotive.
- FlexRay decoder option.
