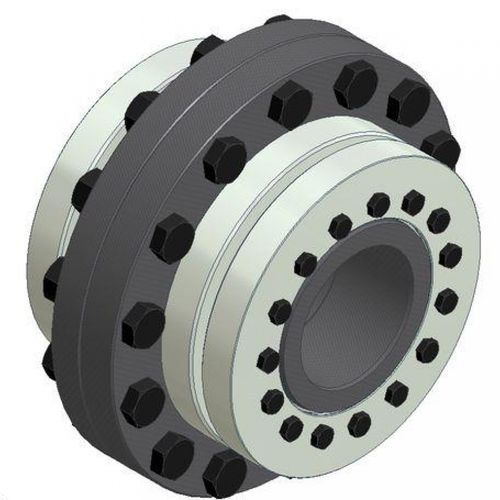

external locking device for hollow shaft (hub) – shaft connection three-part design self-releasing tapers, greased with MoS2 (μ = 0.05) screws greased with MoS2 (μ = 0.10) zinc plated outer rings O-Ring between outer rings from size d = 140 mm and above MAV 2208: heavy series, high capacity tolerance of hub outer diameter: h8 surface finish of shaft and hub Ra
Технические характеристики
CharacteristicsTyperigidProduct applicationsshaftOther characteristicsdouble shrink disc, dryInstallation systemflangeTorque
Min.: 1,210 Nm (892.4502 ft.lb)
Max.: 2,140,000 Nm (1,578,382.9995 ft.lb)
