Description

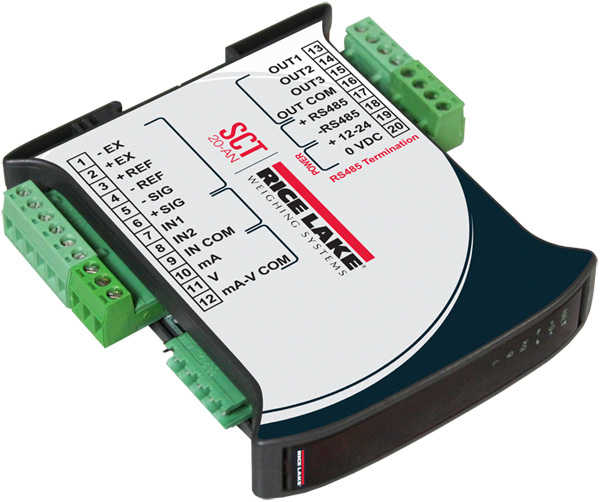

The Rice Lake SCT20 transmitter is DIN Rail mountable within a cabinet or control panel, where it serves to convert a scale’s load cell signals to analog output, serial output, or a specific network protocol. Unlike many other signal transmitters, Rice Lake’s SCT20 has its own 0.3 inch weight display, with annunciators for unit and weighing status, and push buttons for zero, tare and setpoint entry, simplifying scale setup, calibration and operation.
Технические характеристики
Features
- Displays weight, configuration, calibration and error conditions
- Powers up to eight load cells in parallel (with a 24 bit A/D converter)
- Converts digital weight to analog output or optional DeviceNet or Profibus or EtherNet/IP Protocol
- RS-485 or RS-232 serial output, supports ASCII and Modbus RTU
- 16-bit analog output resolution
- Diagnostic message for load cell disconnect and over capacity errors
- Analog outputs for displayed weight of 0-20mA, 4-20mA, 0-10V, 0-5V or +/-10V and +/-5V, selected as voltage or current, can track positive or negative weight values
- Two digital inputs that can be set as gross/net, zero, peak weight or print
- Three dry contract relay outputs capable of driving up to 150 ma at 115 VAC
- Single channel indicator
- Bit swapping selection for little endian and big endian format
- 0.3in (8mm), six-digit, 7 segment LED display
- 4-key push-button panel, tactile feel Zero, Tare, Print, Menu, Escape, Left & Up Navigation, Enter
- Space saving, vertical shape with DIN rail mounting
