Description

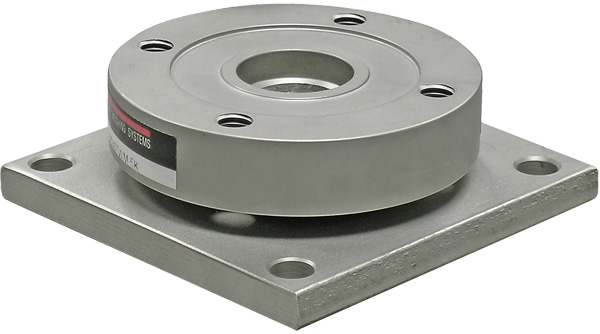

The Rice Lake RL9000 TWM load cell is a tank weighing module with rugged stainless steel construction that provides accurate weighing technology for hostile environment applications. Its low profile configuration maximizes space and its all-in-one construction minimizes installation time. Furthermore, the RL9000 TWM will accurately weigh even if the base is off level by as much as 3. A broad range of weighing capacities from 1,000 lb to 450,000 lb enables its use in virtually any weighing application. What’s more, the 100% uplift protection and self-checking design provide extreme durability. The RL9000 TWM comes standard with welded seal. Overall, the streamlined design of the RL9000 TWM provides accuracy and durability in hostile environment weighing applications.
Технические характеристики
Features
- Capacities: 1000-450,000 lb (453.6-204,116.6 kg)
- Very low profile design
- 3 mV/V output
- Self-centering in all directions
- Self-checking assembly
- 100% sideload & uplift and 300% overload protection
- Stainless steel construction
- Welded seal
- Weighs accurately with as much as 3° on-parallel load
- Integral 25ft cable
