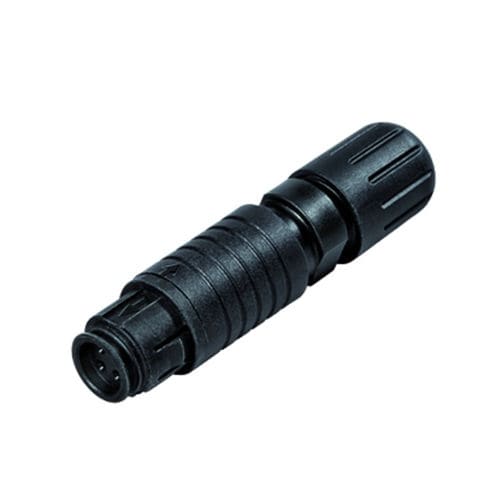

M9 IP67 Female cable connector, Contacts: 2, 3.5-5.0 mm, shieldable, solder, IP67 Connector design — Female cable connector Version — Connector socket straight Connector locking system — screw Termination — solder Degree of protection — IP67 Cross-sectional area — max. 0.25 mm² / AWG 24 Cable outlet — 3.5-5.0 mm Temperature range from/to — -40 °C / 85 °C Tightening torque locking — 0.8-1.0 Nm Tightening torque sleeve — 0.2 Nm Tightening torque pressing screw — 0.3-0.4 Nm Mechanical operation — > 500 Mating cycles Weight (g) — 20.22 Customs tariff number — 85369010
Технические характеристики
CharacteristicsTypeRFFormatDINShapecircularConnection typefemaleMaterialpolyamideProtection classIP67Other characteristicssubminiature, M9, EMC-shieldedPrimary current
1 A, 3 A, 4 A
Voltage
125 V
