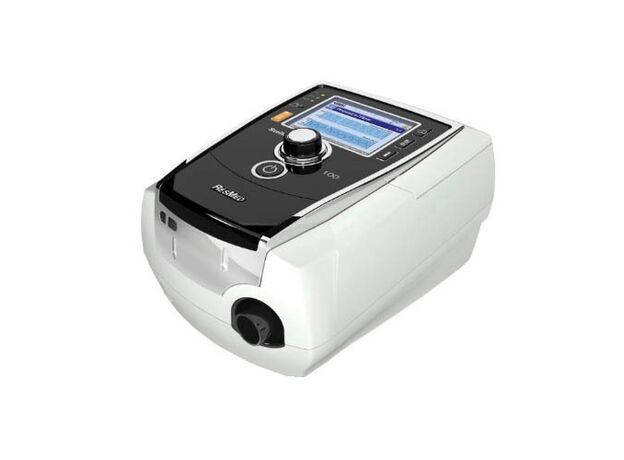

Brand: Resmed Model: Stellar 100
Resmed Ventilator Stellar 100 With FiO2 Specification:
- Efficacy and comfort characteristics can be fine-tuned to help with mask leakage and help Stellar 100 keep your breathing in sync. Ramp and Down with Ramp. The Ramp function gradually and comfortably ramps up the pressure to your recommended level To maintain you on the go, an inner battery offers two hours of constant energy. Other choices for mobility include extinguishing.
- Optional integration of oxygen up to 30 L / minute and comprehensive alarms to provide additional safety and care assurance.
- Optional integration of oxygen up to 30 L / minute and comprehensive alarms to provide additional safety and careRamp and Ramp Down assurance. The Ramp function gradually and comfortably ramps the pressure up to your recommended level to assist you in a treatment session.
Feature of Resmed Ventilator Stellar 100:
1. Modes:
ST (Spontaneous–Timed)
PAC (Pressure Assisted Control)
CPAP (Continuous Positive Airway Pressure)
S (Spontaneous)
T (Timed)
2. Pressure range:
IPAP: 2–40 cm H2O
EPAP: 2–25 cm H2O
3. TiControl:
Ti Max 0.3–4 sec
Ti Min 0.1–Ti Max
4. Respiratory Rate: 5–60 bpm
5. Rise Time: Min, 150–900 msec (approx.)
6. Trigger and Cycle: Five sensitivity settings
7. Adjustable alarms:
- High Leak
- Low Minute Ventilation
- Low and High Pressure
- Low and High Respiratory Rate
- Apnoea
- Low and High FiO2
- Low SpO2
- Non-vented mask
8. Standard fixed alarms:
- Circuit disconnected
- Overpressure
- Blocked tube
- Internal battery empty
9. Dimensions (LxWxH): 230 x 170 x 120 mm
10. Weight: 2.1 kg
11. Internal battery: Lithium-ion, 2 hours at EPAP 5, IPAP 15, 20 bpm
12. Power supply:
- AC 100–240V 50–60Hz,
- 2.2A AC 110V 400Hz,
- 2.2A DC 24V/3A
Estimated Delivery: 5-10Days Warranty :
- From Manufatcurer
- On site
- 1 Years
Brand/Manufacturer Brand: Resmed Weight & Dimensions Product Dimension (mm): 230 x 170 x 120 mm Product Weight: 2.1Kg Find similar
