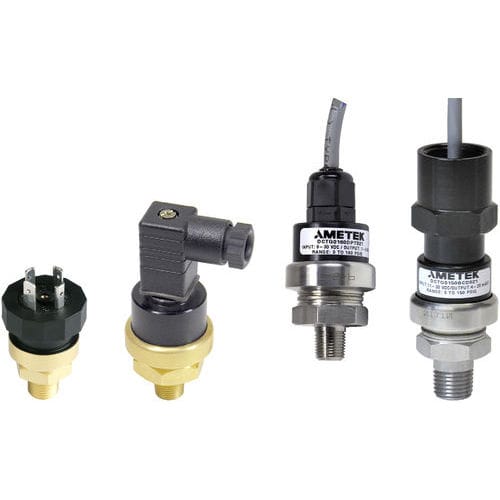

AMETEK’s Model DCT pressure transducer is a digitally compensated unit available with many different outputs including 4-20 mA, 1-6 VDC, 1-5 VDC, and 0-5 VDC. Process connector options include 1/8” or 1/4” NPT and 1” NPT flush mount, in either brass of 316 SST. Accuracy is excellent for the industrial transducer, less than ±0.3% full-scale overpressure and less than ±1.0% full scale over a wide compensated temperature range. The DCT is offered in pressure ranges from 0-1 psi through 0-3000 psi, to cover a broad range of applications, in absolute, compound, and gauge pressure types. Standard electrical connectors include 18” cable, Packard connector, DIN-A, and DIN-C. The Model DCT can be customized for OEM’s, such as special pressure ranges, tighter calibration, different electrical connections or pressure connections, etc. Digitally Compensated — Low total accuracy errors for interchangeability and high précision measurements. Multiple Pressure Port Options — Ease of installation and attachment with no adapters. 0.2% Typical Accuracy — Offers superior accuracy to compétitive models and can be used on critical applications. Factory Calibrated for Pressure and Température — No need for field calibration. Plug and play reliability. Rugged, Compact Design — Easy to package or install. Custom Designs Available — Adaptable to spécial needs. Numerous Weatherproof Electrical Connection Options — Quick hook-up and remote applications. Numerous Electrical Outputs — Can be used with standard process equipment, conventional receivers, and compatible with microprocessors. RFIÆMI Protection Option — For use in high noise environments.
Технические характеристики
CharacteristicsPressure typerelative, absoluteOutput4-20 mA, digitalSupply voltage5 VDCMountingthreaded, flush diaphragmMaterialstainless steel, brassOther characteristicscompact, digitally compensatedPressure range
Min.: 1 psi
Max.: 3,000 psi
Precision
0.2 %, 0.3 %
Long-term stability
0.25 %
Process temperature
Min.: -40 °C (-40 °F)
Max.: 100 °C (212 °F)
