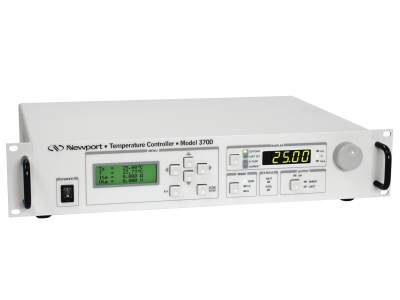

The 3700 TEC Controller provides a 336 W bipolar output for operation with thermoelectric (TE) coolers and replaces legacy Model 3150. At the units heart, DSP based controls allow for PID settings with fast settling times. This feature combined with sound electronics design and quality components results in great temperature stability and higher reliability.
Технические характеристики
- TE Current Range -14.00 to +14.00 A
- TE Voltage Range -24 to + 24 V
- TE Output Power 336 W
- Temperature Range -100 to 250°C
- TE Current Accuracy ± 0.3%
- TE Current Limit Accuracy ± 0.3 % FS
- TEC Noise/Ripple
- TEC Output 1 h Stability 0.0009°C
- TEC Output 24 h Stability 0.0019°C
- Connector Type 7-pin, female D-Sub 7W2
- Computer Interfaces USB
- Display Type 4-line by 20 character alphanumerical, and seven segment display
- Display Range Resistance (10 A) 0.01 to 250.00 k
- Display Range Resistance (100 A) 0.001 to 25.000 k
- Operating Temperature 0 to 40°C
- Power Requirements 100-240 VAC, 50/60 Hz universal input
