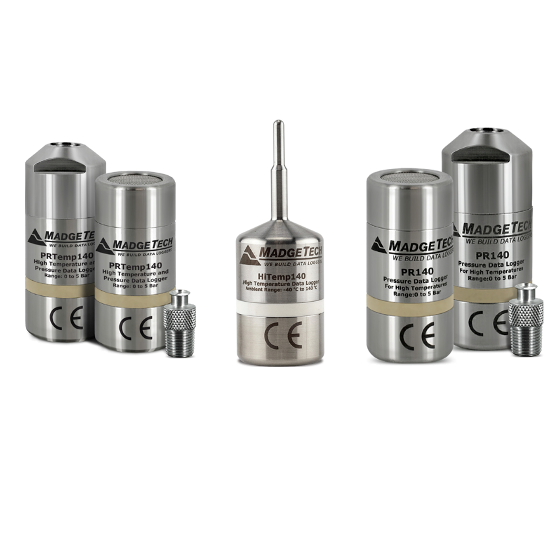

The MadgeTech data loggers are rugged, high precision, temperature and humidity data loggers built for use in harsh environments. The stainless steel devices are submersible (IP68) and can withstand temperatures up to 140°C.
They can store up to 32,700 readings, and the EHiTemp140 features a rigid external probe capable of measuring extended temperatures, up to 260°C. The EPR140 has a pressure range from 0 to 5Bar and EPRTEMP140 has a temperature range of -20°C to +140°C. The devices record date and time stamped readings, and have non-volatile solid state memory which retains data even if the battery becomes discharged.
Using the MadgeTech 4 Software, starting, stopping and downloading the devices is simple and easy. To use, simply place the device in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel for further calculations.
Features:
- Operates up to 140 °C
- Submersible (IP68)
- User Replaceable Battery
- Rugged Stainless Steel Body
- Programmable Stop/start Time
- Engraved Label
- CE Compliant
- Software Battery Life Indicator
- 0.125 inch NPT Pressure Port
- Interface dock, 6 port docking station and replacement battery available separately
Specifications:
Model EHITEMP140
EPR140
EPRTEMP140
Pressure Sensor
Semiconductor strain gauge Strain gauge Range
0 to 5Bar
0 to 5Bar Resolution
0.0001Bar
0.0001Bar Accuracy
+0.03Bar
+20 to +140°C
+0.03Bar
+20 to +140°C
Temperature Sensor
100 Ω Platinum RTD
Resistance Temperature Detector (RTD)
Range
-200 to +260°C
-20 to +140°C
Resolution
0.01°C
0.01°C Accuracy
±0.1°C (20 to +140°C)
±0.3°C (-20 to +20°C)
±0.4°C (-40 to -20°C)
±0.1°C
General Weight 120g Flush Top: 90g
NPT Pressure Port Top:100g
Flush Top: 90g
NPT Pressure Port Top:100g
Dimensions Body: 40mm x 24.6mm dia.
Probe: 27mm x 3.2mm dia. up to 178mm x 4.8mm dia.
Flush Top: 50.8mm x 25.4mm dia.
NPT Pressure Port Top: 58.2mm x 25.4mm dia.
Flush Top: 50.2mm x 24.6mm dia.
NPT Pressure Port Top: 58.2mm x 24.6mm dia.
Material 316 Stainless steel Calibration Digital via software, automatically recorded within device Battery 3.6V high temperature lithium, 2 year life Data Format Date and time stamped °C, K, °F or °R PSIA, inHg, mmHg, bar, atm, Torr, Pa, kPa, MPa
°C, °F, °R, K, bar, mbar, PSI, inHg, mmHg, atm, Torr, Pa, kPa, MPa
Time Accuracy ±1min/month at 20ºC to 30ºC (stand alone mode)
±1 min/month at 25°C
Extended Operation: ±20min/month at 140 °C (±450 ppm)
Computer Interface IFC400 OR IFC406 USB docking station required, 125,000 baud
IFC400 or IFC406 USB docking station required
OS Compatibility Windows XP SP3 or later
Software Compatibility Standard Software version 2.03.06 or laterSecure Software version 4.1.3.0 or later
Standard Software version 2.06.02 or laterSecure Software version 4.1.3.0 or later
Standard Software version 4.2.3.0 or laterSecure Software version 4.2.2.0 or later
Operating Environment -40 °C to +140°C
0%RH to 100%RH, 0.0001 to 7Bar
-20 °C to +140°C
0%RH to 100%RH, 0.0001 to 7Bar
IP Rating IP68 Approvals CE
BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, CRUSH, PENETRATE, OR INCINERATE. BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 150ºC.
