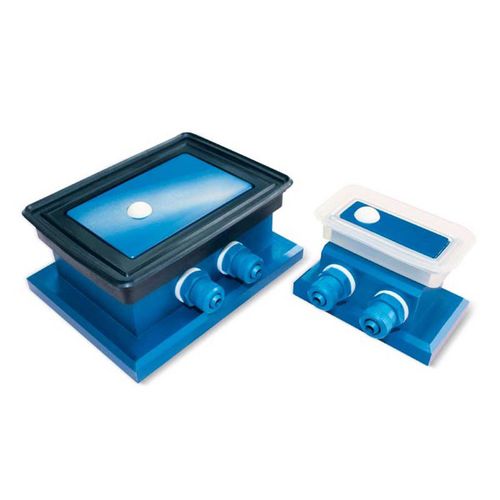

Rectangular vacuum cups with ball valve and self-locking support These cups represent a true mobile clamping system. They are composed of: — A sturdy anodised aluminium support with a wide surface at the base limited by a seal whose purpose is to fix it to the bearing surface. — A standard rectangular flat cup which is cold fitted onto the upper part of the support for gripping the load. — A ball valve that opens up creating vacuum, only when activated by the load to be gripped. — Two quick couplings for vacuum connection. The detection of vacuum, for gripping and releasing the support, can be made via three-way vacuum valves or solenoid valves. All cups with self-locking support of this and other ranges with the gripping plane at the same height can be used simultaneously, even if they are of different types or have different sizes.
Технические характеристики
CharacteristicsTyperectangularApplicationsfor grippingOther characteristicsclamping
