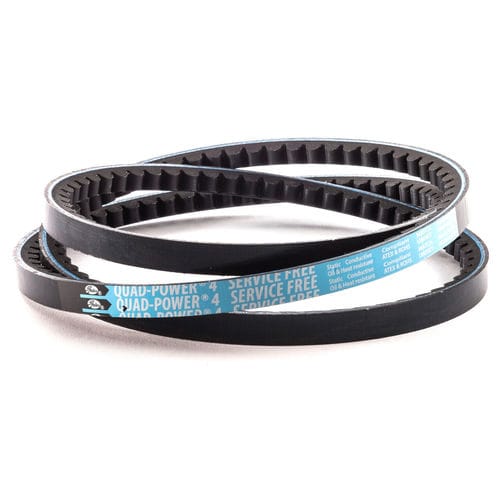

By using innovative minimal-stretch cord technology, Gates® Quad-Power® 4 bandless V-belts are free of maintenance. Unlike conventional belts, the Quad-Power® 4 V-belt does not suffer from severe tension decay in the first hours after installation. So no run-in period nor any re-tensioning are required. This new generation of SERVICE FREE EPDM belts are designed to extend product life time eliminating costly downtime for re-tensioning, repair and replacement. EPDM rubber compound to ensure a long service life and a wear-resistant belt under extreme temperatures. Minimal-elongation polyester tensile cords allow for stable tension over the entire lifetime. Service-free V-belt with high stability on the toughest drives. FEATURES AND BENEFITS Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX. Blue adhesion layer for an extra strong bonding of the tensile cords and the rubber compound. Match system: all sizes meet Gates UNISET tolerances, they can be installed without matching. Perfect fit on standard ISO/DIN V-pulleys and 3VX/5VX for RMA pulley grooves. Optimised notch form for reduced bending stress and improved efficiency. A clear branding for ease of identification. Temperature Range: -50°C to +130°C. REACH and RoHS 2 compliant. Energy efficiencies up to 98%. Fewer replacements. Higher performance. Halogen-free belt. Less downtime.
Технические характеристики
CharacteristicsTypetrapezoidal, VMaterialrubber, EPDMSectorindustrialOther characteristicshigh-performance, maintenance-free, raw edge, abrasion-resistant, high temperature-resistant, low-temperature-resistant, ATEXLength
Max.: 2,682 mm (105.59 in)
Min.: 907 mm (35.71 in)
Width
10 mm, 13 mm, 16 mm (0.39 in)
