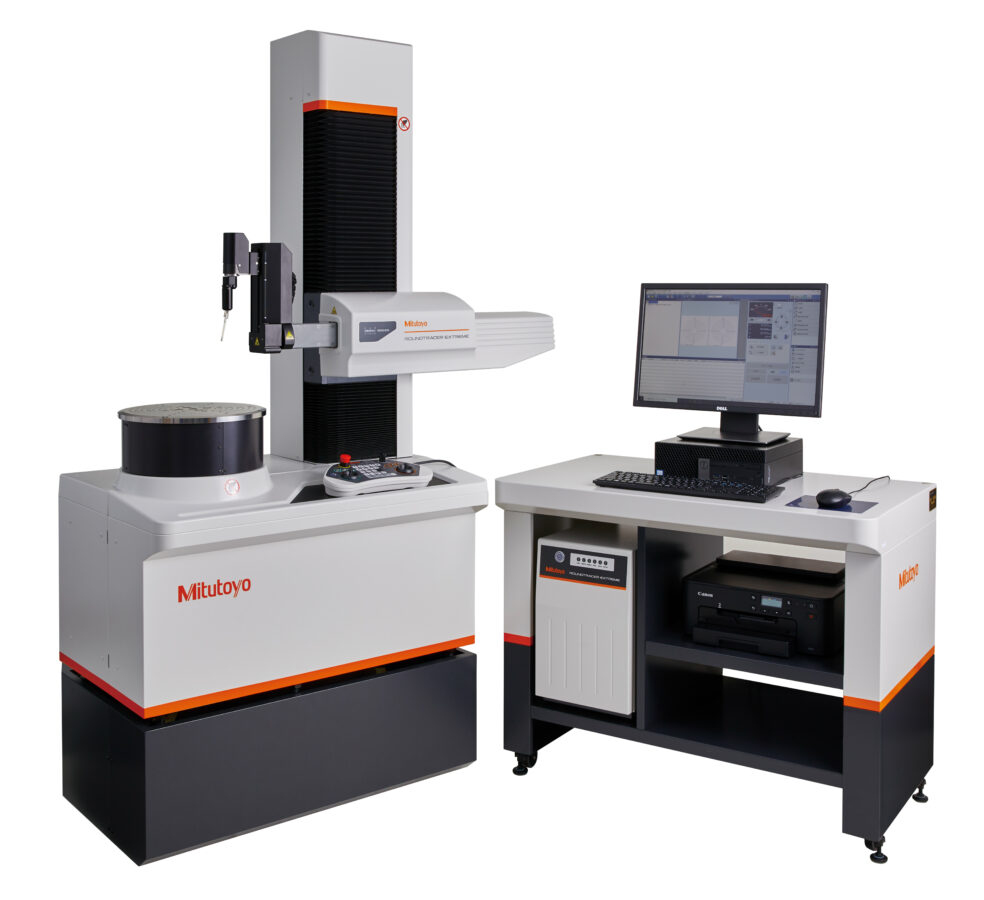

The Mitutoyo Roundtracer Extreme delivers speed, accuracy and operability at the highest level while supporting the measurement of workpieces of various shapes such as camshafts and bearings. Its new 3-step motorized sliding axis, detector and detector holder help avoid workpiece interference without having to replace the stylus while enabling automatic measurement for better flexibility and efficiency.
- Best-in-class maximum of 100 mm/sec. with improved positioning accuracy and greatly reduced positioning times dramatically increases throughput compared with conventional models
- Curvilinear measurement throughput is increased since data can now be acquired independently of the turntable 0° position
- New centering table architecture reduces positional changes of the workpiece during measurement
- Ergonomic remote box enhances the user»s experience with clearly laid out buttons and controls
| Order No.: | Product Image: | Table measuring speed (rpm): | Table maximum probing external diameter: | Table maximum probing internal diameter: | Table max probing diameter of inner-opposite surface measurement: | Table Drive noise: Radial direction: | Table Drive noise: Axial direction: | Column Drive noise: | Column Max Probing Depth: | Radial Drive noise: | Detector Measuring Force: | Detector Stylus Tip: | Stylus Angle Adjustment: | |
|---|
| 211-552-11 w/ Roughness detector (optional) | — | 0.01 to 2rpm | 11.9″ / 302.7mm | 16.1″ | 3.58″ / 91.3mm | Rz 0.10μm | Rz 0.10μm | Rz 0.10μm | Under ø0.79: 0.4″ / Under ø20: 10mm / ø0.31 to ø0.79: 3.15″ / ø20 to ø28: 80mm / Over ø1.1: 4.53″ / Over ø28: 115mm | Rz 0.10μm | 0.75, 4 mN | 2, 5μm | 0° |
| 211-552-11 w/ Roundness detector | — | 2, 4, 6, 10, 20, 30rpm | 11.8″ / 300mm | 16.2″ | 3.07″ / 94mm | — | — | — | Under ø1.26: 1.97″ / Over ø1.26: 4.53″ / Under ø32: 50mm / Over ø32: 115mm | — | 10, 30, 50 mN | Carbide ball diameter 0.06″ / Carbide ball diameter 1.6mm | 0, 10 (Auto recognition)° |
| 211-552-11 w/ Roughness detector (optional) |
| 211-552-11 w/ Roundness detector |
Технические характеристики
| Model: | RTX-0605-A |
|---|
| Technology: | Automated |
|---|
| Units: | Inch, Metric |
|---|
| Table Adjustment Method: | Automatic |
|---|
| Table positioning drive speed in CNC mode: | 30 (Max rpm) |
|---|
| Table Diameter: | 11.8′ / 300mm |
|---|
| Table Centering Range (With DAT function): | ± .2′ / ± 5mm |
|---|
| Table Leveling Range: | ±1° |
|---|
| Max Table Loading: | 132lbs / 60kg |
|---|
| Table Max Probing Diameter: | 14.1′ / 358mm |
|---|
| Table Max Loading Diameter: | 26.8′ / 680mm |
|---|
| Column Traverse Method: | Motorized |
|---|
| Column Drive Speed (Max): | 100mm/s |
|---|
| Column Drive Speed using remote box mode (Max): | 40mm/s |
|---|
| Column Measuring Speed: | 0.1, 0.2, 0.5, 1, 2, 5mm/s |
|---|
| Column parallelism: | 1.2 / 550μm/mm |
|---|
| Column Max Probing Height: | 21.6′ / 550mm |
|---|
| Radial Traverse Method: | Motorized |
|---|
| Radial Drive Speed (Max): | 100mm/s |
|---|
| Radial Drive Speed using Remote Box mode (Max): | 40mm/s |
|---|
| Radial measuring speed: | 0.1, 0.2, 0.5, 1, 2, 5mm/s |
|---|
| Detector Measuring Direction: | One-direction |
|---|
| Data Sampling Points: | 14,400/rev |
|---|
| Air pressure: | 0.39 Mpa |
|---|
| Main Unit Dimensions: | 50.5 x 26 x 64.2′ / 1282 x 660 x1630mm |
|---|
| Main Unit Mass: | 2183lbs / 990kg |
|---|
