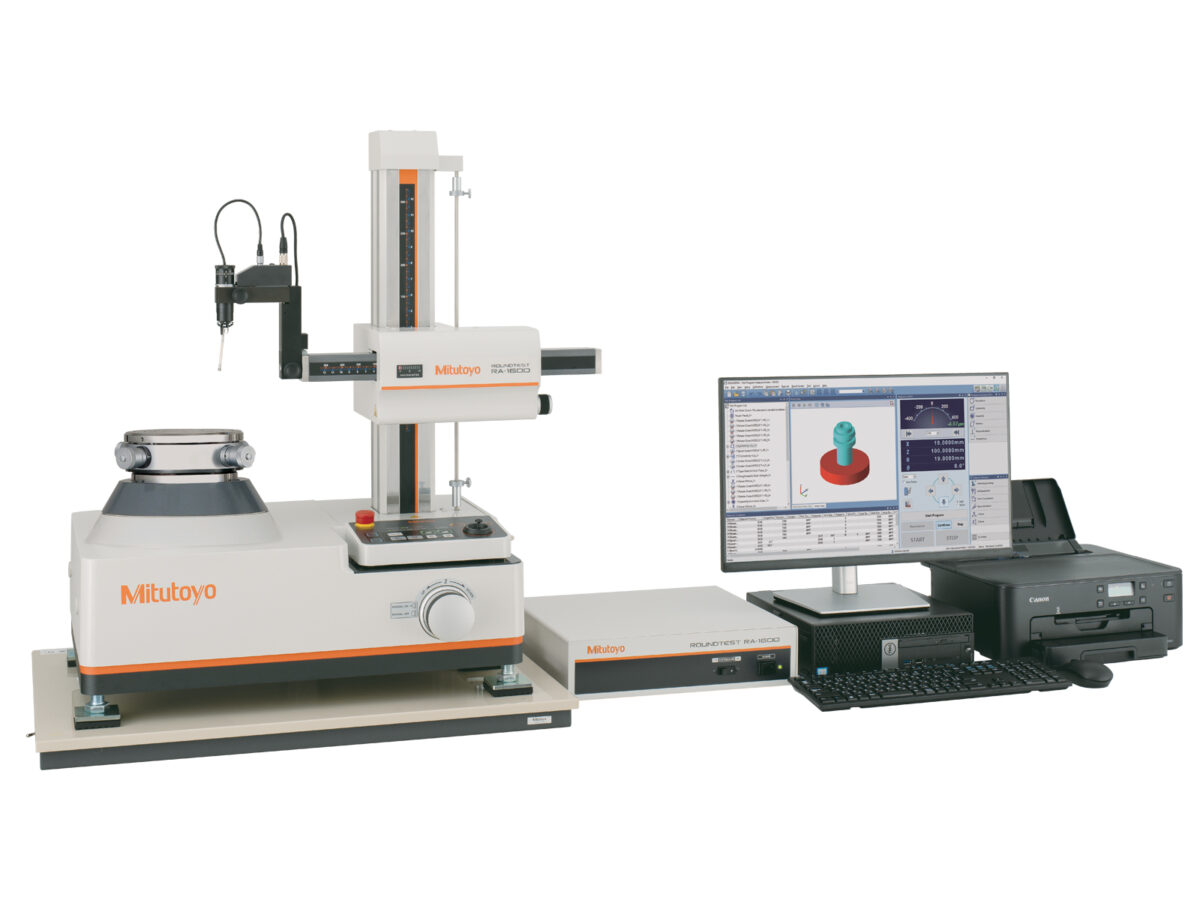

Раундтест РА-1600/РА-1600М

The RA-1600/RA-1600M roundness/cylindricity measuring system is PC-compliant and is equipped with extensive analysis features for both the shop floor and laboratory environment. The unit»s highly accurate and easy-to-use turntable enables simple, reliable centering and leveling on a wide variety of workpieces.

• The spiral-mode measurement function combines table rotation and rectilinear action allowing cylindricity, coaxiality and other measurement data to be loaded as a continuous data set
• Built-in X-axis linear scale makes measurement while tracing possible when displacement due to form variation exceeds the measuring range of the detector, and X-axis motion is necessary to maintain contact with the surface of the workpiece
• Enhanced detector safety functions, such as accidental touch and collision detection, minimizes damage to both machine and workpieces
• Analysis results such as cylindricity and coaxiality can be visually expressed in 3D graphics
• Continuous OD/ID measurement is possible without changing the detector position
• High rotational accuracy (0.03+6H/10000)μm is maintained for an entry level to mid-range model
• PC-based cylindricity capable Roundtest for both shop floor and laboratory environment
• Simple easy to use center and level function with mechanical mic heads on alignment table
• Accidental touch function disables the movement when the detector goes over range
