RA-H5200 ЧПУ – Экстремальный тип

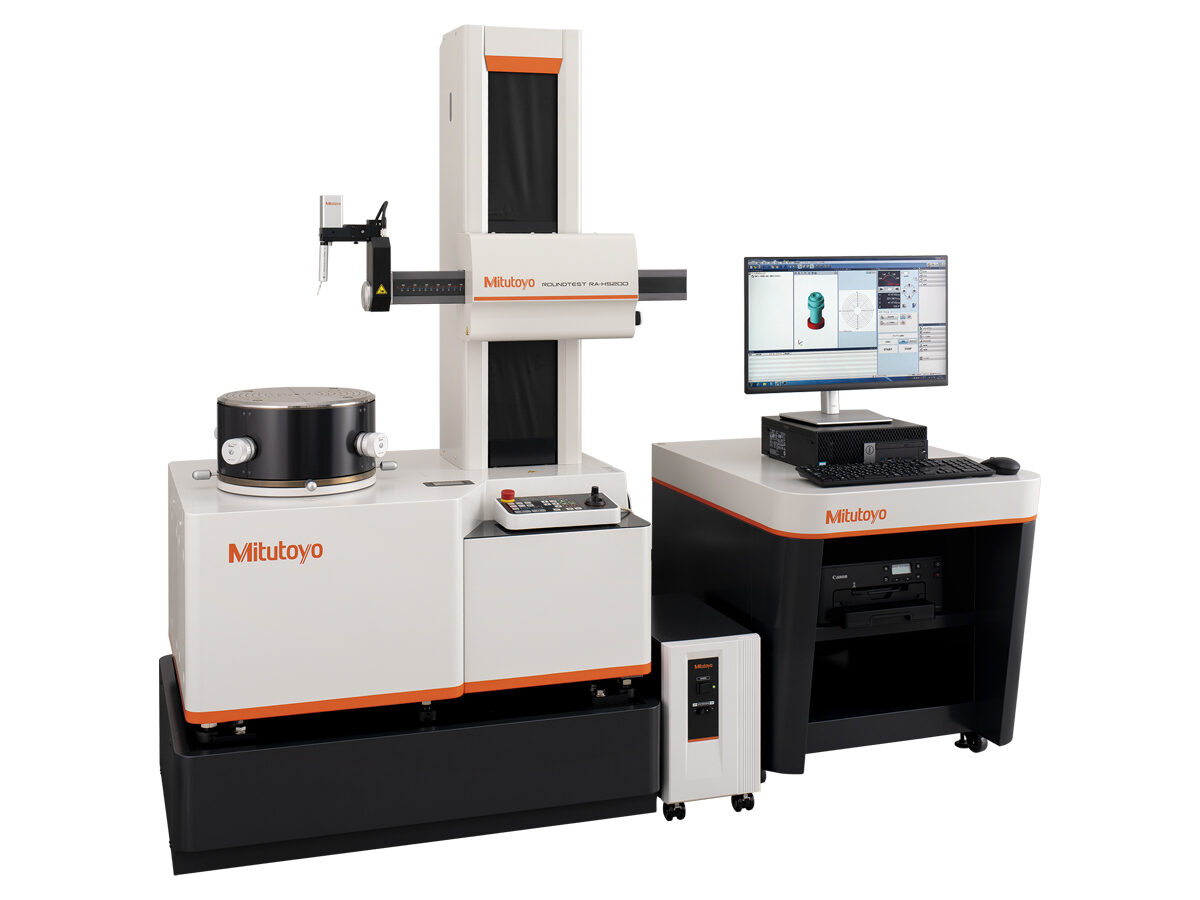

The Mitutoyo Roundtest Extreme RA-H5200CNC Roundness, Cyclindricity and Surface Roughness Measuring System features automatic orientation control on the detector unit to enable the system to automatically execute high-speed, operator-free measurements. The RA-H5200 Extreme CNC roundness tester incorporates a programmable detector unit orientation function to continuously and automatically measure inner and outer diameters as well as top and bottom surfaces of a workpiece. The unit»s continuous OD/ID measurement function performs internal and external diameter measurements without the need to change the detector position.

• High-accuracy positioning sensors in the X- and Z-axis drive units, makes highly precise, repeatable measurements
• Rigid base and highly accurate, highly rigid turntable that achieves world-class rotational accuracy
• An Automatic Adustment Table (AAT) provides high-speed centering and leveling automatically, greatly reducing total measurement time
• Measurement while tracing is possible through a built-in linear scale in the X-axis to maintain contact with the workpiece surface when displacement due to form variation exceeds the measuring range of the sensor
• Spiral-mode measurement function combines table rotation and rectilinear action allowing cylindricity, coaxiality and other data to be loaded as a continuous data set
• Enhanced detector safety functions, such as accidental touch and collision detection, minimizes damage to both machine and workpieces
• A surface roughness detector, compliant with the relevant International Standards, can be mounted in place of the roundness measuring detector to create a multiple sensor testing system for roundness/cylindricity and surface roughness
