Features:
- PowerFlex design with 1200 watts maximum power
- Wide range of voltage/current combinations
- Up to 60V and up to 50A within a power envelope
- Linear final regulation provides very low output noise and fast transient reponse
- Setting by direct numeric entry or by spin wheel
- High setting resolution of 1mV in up to 60 volts
- Multiple non-volatile setting memories
- Variable OVP and OCP trips
- Low resistance and power calculation
- Analog control interfaces for voltage and current
- Bench or rack mounting with front and rear terminals
Accessories:
- RS-232
- LAN Ethernet
- USB
- GPIB
- LXI
Specifications:
- Voltage: 60 Volts
- Power: 1200 Watts
- Current: 50 Amps
- O/P»s: 1

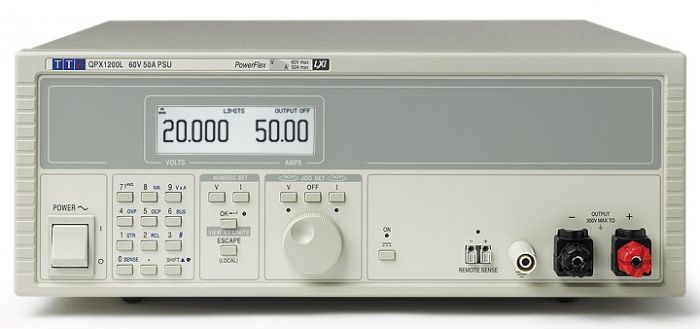

The QPX1200SP is a 60 V, 1.2 kW, 50 A dc power supply from Thurlby Thandar Instruments. The QPX1200S is a laboratory dc power supply with a maximum total output power of 1200 watts and is suited to both bench-top and system applications. The QPX1200SP adds full digital remote control using USB, RS-232, LAN and GPIB interfaces. Both models include analog remote control.
Технические характеристики
| Manufacturer | Thurlby Thandar Instruments |
|---|---|
| Condition | New |
| Current | 50 A |
| Voltage | 60 V |
| Power | 1.2 kW |
