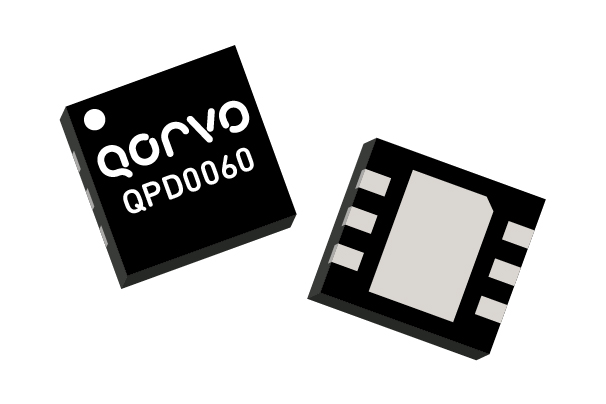

The QPD0060 is a wide band over-molded DFN discrete power amplifier. The device is a single stage unmatched power amplifier transistor.
The QPD0060 can be used in Doherty architecture for the final stage of a base station amplifier for small cell, microcell, and active antenna systems. The QPD0060 can also be used as a driver in a microcell base station power amplifier.
The wide bandwidth of the QPD0060 makes it suitable for many different applications from DC to 2.7 GHz. QPD0060 can deliver PSAT of 89.1 W at +48 V operation at 2.1 GHz.
Технические характеристики
| Part Number: QPD0060 |
| Manufacturer: Qorvo |
| Frequency Min: 0 GHz |
| Frequency Max: 3.6 GHz |
| Output Power: 95 W |
| Gain: 25 dB |
| % Typ Efficiency: 73.6 |
| Supply Voltage: 48 V |
| Id: 150 mA |
| Package: DFN |
| Process: GaN |
| Type: RF Power Discrete Transistors |
