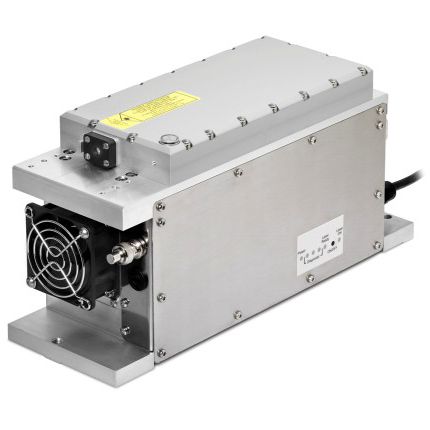

The PNG-M04005 PowerChip™ passively Q-switched microchip laser offers the highest peak power and shortest pulse at 532 nm with up to 500 Hertz repetition rate and with an excellent beam quality. The energy per pulse reaches approximately twice the value of the PNP-M02010. It features a completely integrated platform which includes the laser head, power supply and air cooling in a compact, rugged, and turnkey package. KEY FEATURES > Family: PowerChip > Energy/Pulse: 35 µJ > Repetition rate: 0.5 kHz > Triggered: yes > Single frequency: no > Pulse duration: 400 ps > Package: PNx
Технические характеристики
CharacteristicsOperational modeQ-switched, short-pulse, triggeredTechnology solid-stateSpectrumgreenApplicationsfor materials processing, for micro-machining, drilling, LIDAR, high-powerOther characteristicscompact, rugged, air-cooled, high-powerPower
0.018 W, 85,000 W
Wavelength
532 nm
