PXIE-7813R National Instruments PXI

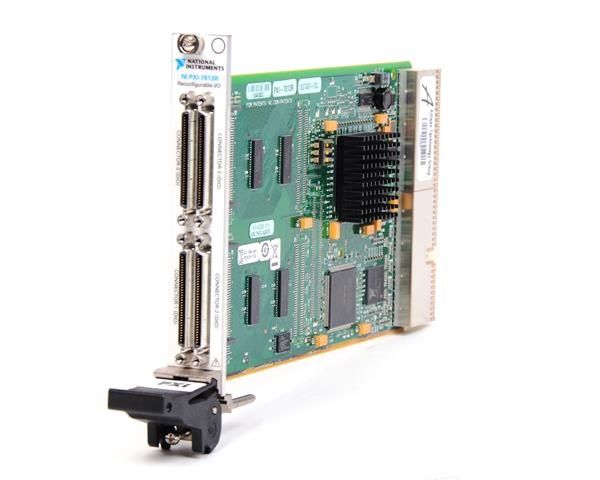

National Instruments PXI-7813R R Series Reconfigurable I/O Module (DIO) 160 DIO lines, 3 million gate FPGA
Features:
- 160 Digital Lines Configurable as Inputs, Outputs, Counters, or Custom Logic at Rates up to 40 MHz
- Virtex-II 3M Gate FPGA Programmable with the LabVIEW FPGA Module
- User-Defined Triggering, Timing, and Onboard Decision Making with 25 ns Resolution
- High-Speed Digital Pattern Generation with 196 KB of Onboard Memory and DMA Data Streaming
The National Instruments PCI-7813 / PCI-7813R Series Digital RIO with Virtex-II 3M Gate FPGA features a user-programmable FPGA chip for onboard processing and flexible I/O operation. You configure all functionality using NI LabVIEW graphical block diagrams and the LabVIEW FPGA Module. Your block diagram executes in the hardware, giving you direct, immediate control over all I/O signals to deliver high-performance capabilities such as the following:
- Complete control over the synchronization and timing of all signals and operations
- Custom onboard decision making that executes with hardware-timed speed and reliability
- 160 digital lines individually configurable as inputs, outputs, counter/timers, PWM, flexible encoder inputs, or specialized communication protocols
The NI PCI-7813 and the PCI-7813R are the same boards. In 2017, NI renamed the PXI-7813R to simply PXI-7813.
Технические характеристики
| Manufacturer | National Instruments |
|---|---|
| Condition | Used |
