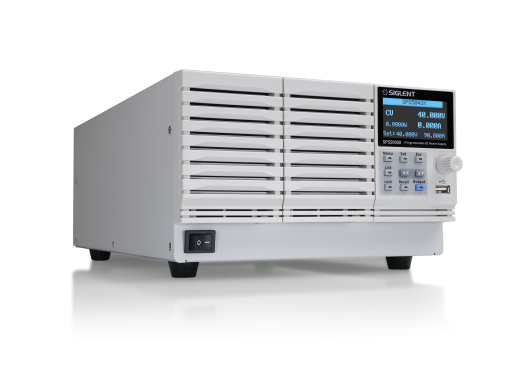

The SPS5083X from Siglent is a single channel programmable switching DC power supply with a maximum voltage of 80 V, a maximum current of 45 A and a maximum power of 1080 W. This power supply can be connected in series (2 units) or in parallel (3 units), check the datasheet for more information about connection possibilities.
The SPS5083X has a bright 2.4 inch OLED screen and a user-friendly interface. It also provides high resolution voltage and current settings, adjustable slew rates, on-device and through USB/LAN list sequence programming, analog control, and over-voltage, current, power and temperature protection. These features make the SPS5083X an ideal choice for demanding users.
Models
The models differ in the amount of channels, maximum voltage, current and output power. ModelSPS5041X SPS5042X SPS5043X SPS5044X SPS5045X Channels 1 1 1 2 3 Voltage 40 V 40 V 40 V 40 V 40 V Current 30 A 60 A 90 A 30 A 30 A Output power 360 W 720 W 1080 W 360*2 W 360*3 W Price 839 €839.00 Excl. VAT 1029 €1,029.00 Excl. VAT 1339 €1,339.00 Excl. VAT 1579 €1,579.00 Excl. VAT 1879 €1,879.00 Excl. VAT Model SPS5051XSPS5081X SPS5082X SPS5083X SPS5084X SPS5085X Channels 1 1 1 1 2 3 Voltage 50 V 80 V 80 V 80 V 80 V 80 V Current 10 A 15 A 30 A 45 A 15 A 15 A Output power 180 W360 W 720 W 1080 W 360*2 W 360*3 W Price 769 €769.00 Excl. VAT 999 €999.00 Excl. VAT 1239 €1,239.00 Excl. VAT 1619 €1,619.00 Excl. VAT 1739 €1,739.00 Excl. VAT 2089 €2,089.00 Excl. VAT Model SPS5161X SPS5162X SPS5163X SPS5164X SPS5165X Channels 1 1 1 2 3 Voltage 160 V 160 V 160 V 160 V 160 V Current 7.5 A 15 A 22.5 A 7.5 A 30 A Output power 360 W 720 W 1080 W 360*2 W 360*3 W Price 999 €999.00 Excl. VAT 1239 €1,239.00 Excl. VAT 1619 €1,619.00 Excl. VAT 1739 €1,739.00 Excl. VAT 2089 €2,089.00 Excl. VAT Specifications Maximum power 1080 W Maximum voltage 80 V Maximum current 45 A Resolution 1 mV / 1 mA Channels 1 Ripple 14 mV RMS / 45 mA RMS Protection functions OVP, OCP, OTP, Low AC Input Protection, LPP Connectivity USB, LAN Connector type Screw Dimensions 214 x 124 x 418 mm Weight 7.5 kg Accessories
The Siglent SPS5083X comes delivered with:
- USB cable
- Power cord
- Output test cord (10A)
- Output guard
