Additional Features:
- Output Voltage: 0-30V (A & B) and 4-6.5 V (C)
- Output Current: 0-2A (A & B) and 5A (C)
- Constant voltage (CV) and constant current (CC) operation
- Independent or series tracking/parallel mode operation to double voltage or current
- Coarse and fine voltage controls
- Adjustable current limiting
- Designed to operate continuously at rated output
- Overvoltage protection and reverse polarity protection
- Two-Year Warranty
Specifications:
Constant Voltage Operation
- Line Regulation: (120 VAC ±10%): ≤0.01% +3 mV (A&B), ≤10 mV (C)
- Load Regulation: ≤0.01% +3 mV (A&B), ≤10 mV (C)
- Recovery Time: 100 μs
- Ripple: ≤1 mV rms
- Temperature Coefficient: ≤300 ppm/°C
Constant Current Operation
- Adjustable Current Limit: 5% to 100% (A&B)
- Line Regulation (120 VAC ±10%): ≤0.2% + 3 mA
- Load Regulation: ≤0.2% + 3 mA
- Current Ripple: ≤3 mArms
Metering
- Type: Two 4-digit LED
- Voltmeter Resolution: 10 mV
- Voltmeter Accuracy: ± (0.5% rdg + 9 digits)
- Ammeter Resolution: 1 mA
- Ammeter Accuracy: ± (0.5% rdg + 9 digits)
General
- Overload Protection: Current limiting, reverse polarity, overvoltage, short circuit
- AC Input: 108-132 VAC 60 Hz 120/220/230/240/ VAC, ±10%, 50/60 Hz version available
- Power Consumption: 350 W
- Operating Temperature: 0° to 40°C <,= 85% R.H.
- Storage Temperature: -15° to 70°C <,= 85% R.H.
- Dimensions (H x W x D): 10.5 x 5.7 x 15″ (267 x 145 x 381 mm)
- Supplied Accessories: User manual, spare fuse and power cord

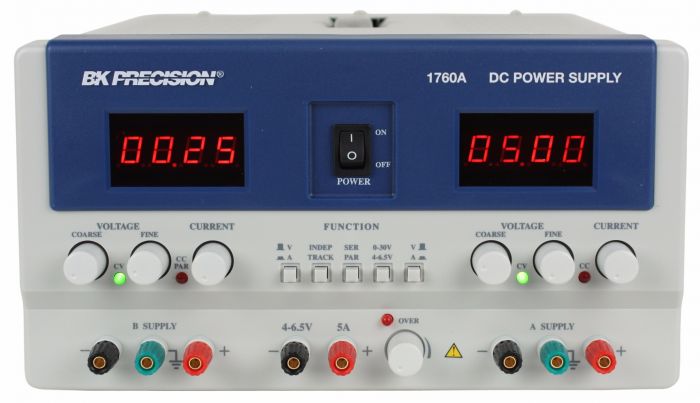

The BK Precision 1760A Triple Output DC Power Supply offers outputs with two 0-30V, 0-2A and one 4-6.5V, 5A, outputs with two 4-digit LED displays. The BK 1760A 4-digit LED displays offer 10mV and 1mA resolution which provides higher accuracy. This makes it an ideal power supply for sensitive applications.
Технические характеристики
| Manufacturer | BK Precision |
|---|---|
| Condition | New |
| Current | 2 A |
| Voltage | 30 V |
| Power | 350 W |
