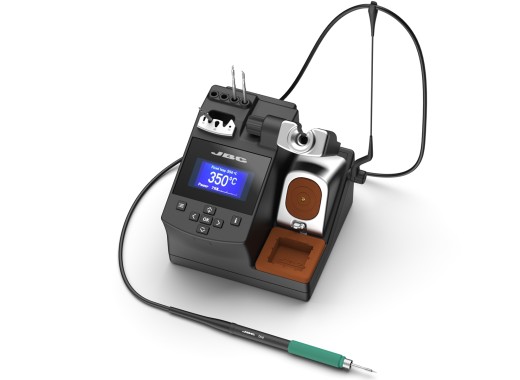

The JBC CD-2SQF lead-free digital soldering station distinguishes itself thanks to the T210-A precision purpose handle and two small tips that it is supplied with, which are ideal for precise soldering. The soldering station can be set from 90 to 450 C using the display and it only takes a couple of seconds to reach the desired temperature. Thanks to the built-in menu, you can personalize 20 parameters. In addition, it is also possible to draw graphs, adjust the parameters and update the software via a USB connector and PC software. This makes it easy to customize the CD-2SQF.
The built-in swipe and standby functions enable a prolonged life span of the soldering tip. The soldering iron will warm up very fast when you pick it up. Because of this, the soldering tip lasts up to 5 times longer.
The soldering station comes with an ergonomic hand piece, suited for the soldering of SMD components and other small components. The station comes without any tips. You can find soldering tips that are suitable for this product at the bottom of this page.
The T210-A soldering iron is great for precise soldering. For more general soldering work, it is also possible to connect the T245-A soldering iron to this station. This soldering iron uses the C245 tips with which it is also possible, for example, to heat larger areas.
The soldering stations of JBC distinguish themselves from other stations due to the use of active tips. The heating element and temperature sensor are both entirely situated in the tip, the temperature can be controlled better and the difference in temperature between the tip and the rest of the soldering iron is very small. In addition, it is possible to replace the tips without the need to let them cool off first because tip exchange assistance is provided in the station.
The new F-update includes a new 7-key keypad for fast and easy configuration of the soldering station. In addition to this there is an added cartridge holder which can store up to four cartridges. Compatibility with the JBC FAE1 extractor via an RJ12 connector is also supported.
Specifications Power 40 W Temperature range 90 C — 450 C Heating time ESD safe Yes Automatic standby Yes Point to earth resistance Connection USB
Buy C210 soldering tips here
The difference with the JBC CD-2BQF is that it has a smaller power, but has much smaller tips, making it easier to solder small areas and thus ideal when more precision is needed.
Accessories
The CD-2SQF comes with:
- Soldering iron (T210-A).
- Power cord
- Stylus change tool
- Soldering iron holder with sponge and steel wool
