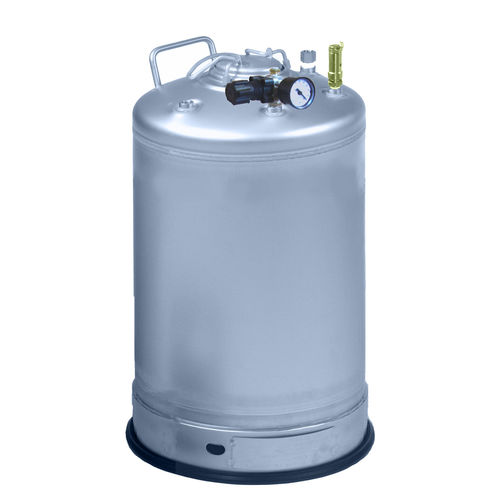

Lightweight pressure vessel stainless Steel 304 Product Characteristics Model — 6000CL-LT (stainless steel 304) 6000CL-LTSS (stainless steel 316) Capacity — 57.0 litre Dimensions — 305 mm inside diameter, 683mm overall height, 17.3kg empty Certification — ASME Section VIII-01, Div. 1 PED – Module A – Category I – CE marked For group 1 and 2 liquids and group 2 gases Material — Wetted parts 304 stainless steel Shell — Cylindrical Working Rated Pressure — 0.5 to 6.9 bar from 4°C to 38°C Closure Oval — pressure closure Closure seal — EPDM O-ring Internal finish — White pickle, welds as welded External finish — White pickle, welds as welded Support — 304 stainless steel skirt with rubber boot Option — On request Note — Can be supplied without air management components Top Head Oval Pressure closure 1 OUTPUT 3.8”NPT — with stainless steel dip tube 1 INPUT connection ¼” NPT — with pressure regulator & gauge 1 INPUT/OUTPUT connection ¼” NPT — with compression fitting 6mm 1 OUTPUT connection ¼” NPT — with safety relief valve
Технические характеристики
CharacteristicsFunctionstorage, process, lubricationProduct applicationsliquid, for lubricants, for water, for compressed air, for laboratories, for cosmetic products, industryMaterialEPDM, inoxTypepressure, cylindricalApplicationsfor food applications, for pharmaceutical applications, for chemical applications, for the cosmetics industry, industrial, laboratory, process, low-pressureOther characteristicsvertical, lightweightCapacity
Max.: 60 l (15.9 gal)
57 l (15.1 gal)
Min.: 3.8 l (1 gal)
Pressure
Max.: 6.9 bar (100.1 psi)
Min.: 0.5 bar (7.3 psi)
