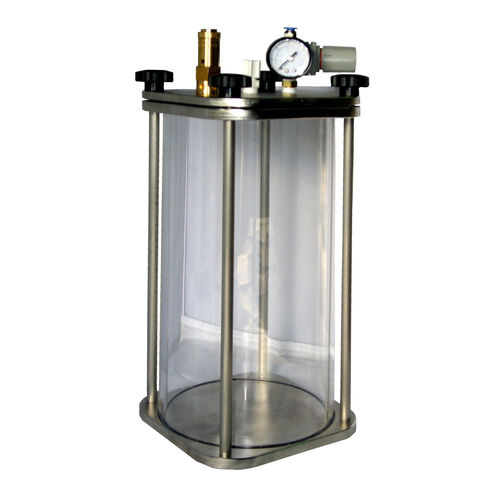

Clear acrylic or glass cylinder and stainless Steel Pressure Tank 5.0L Product Characteristics Model — 5000ML-CT (Acrylic cylinder) 5000ML-CTG (Toughened glass cylinder) Capacity — 5.0 litre Dimensions — 150 mm inside diameter, 405mm overall height, 6.3kg empty Certification — ASME Section VIII-01, Div. 1 Directive 2014/68/EU Article 4 Clause 3 For group 2 liquids Material — Wetted parts 303 stainless steel & Clear Acrylic or Toughened glass cylinder Shell — Cylindrical Working Rated Pressure — 0 to 4 bar at from 0°C to 38°C Working Rated Vacuum — 0 to -1 bar at from 0°C to 38°C Closure — 4 plastic star grips Closure seal — Viton O-ring Top & Bottom Seals — Viton Internal finish — Machined External finish — Machined Option — None LID 8mm thick stainless steel 1 INPUT connection ¼” NPT — with pressure regulator & gauge 1 OUTPUT connection ¼” NPT — with compression fitting 6mm 1 OUTPUT connection ¼” NPT — with safety relief valve
Технические характеристики
CharacteristicsFunctionstorage, dispensing, process, cooling, mixing, dosing, industrial, level control, feedProduct applicationsfor food products, for used oil, for chemicals, drinking water, air, for paint and ink, for gas, for compressed air, level indicator, vacuum, for the food industry, for pressure tanks, industryMaterialstainless steel, glass, acrylic, coatedTypecylindrical, pressure, double-walled, pressure-lessApplicationsfor food applications, industrial, low-pressure, for chemical applications, for pharmaceutical applications, for the cosmetics industry, for oil industry applications, storage, high-temperature, for vacuum, for the automotive industry, versatile, for adhesive application, laboratoryOther characteristicscustomCapacity
5 l (1.3 gal)
Pressure
Max.: 4 bar (58 psi)
Min.: 0 bar (0 psi)
