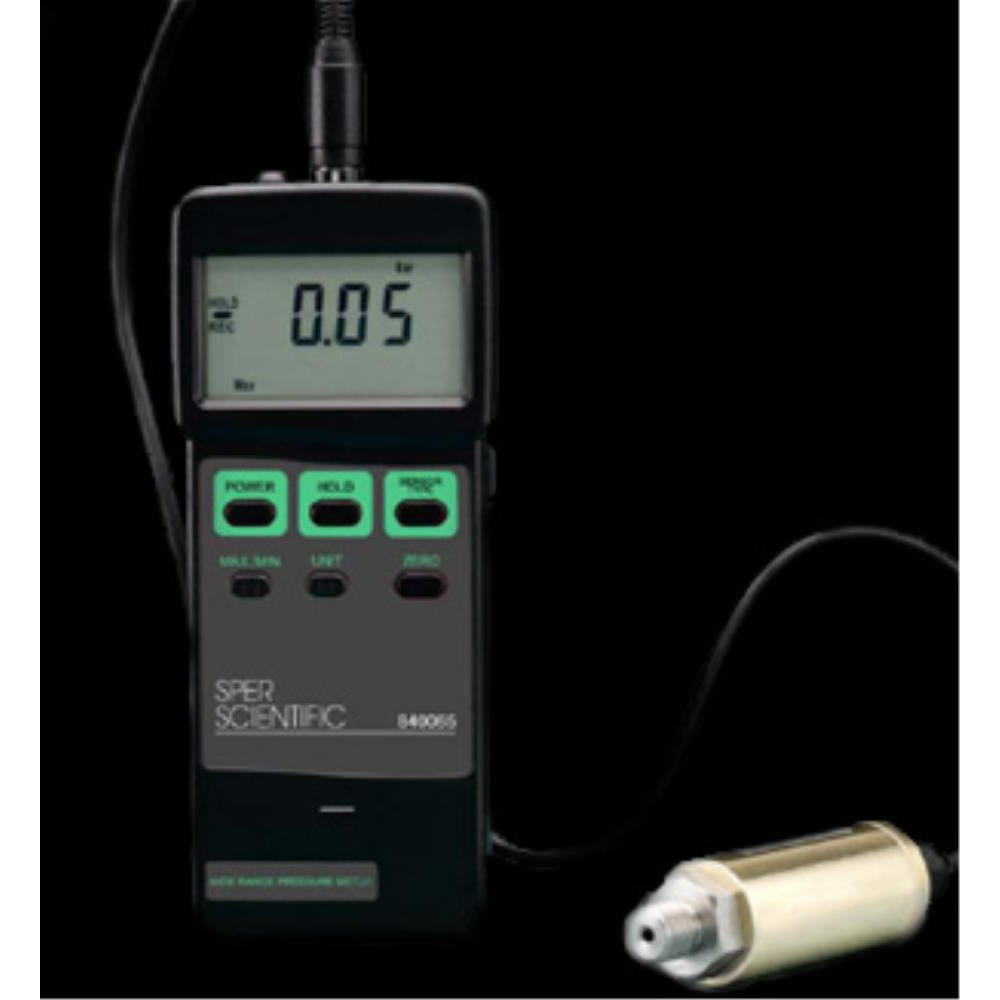

A pressure transducer, often called a pressure transmitter, is a transducer that converts pressure into an analog electrical signal. Sper Scientific Pressure Transducers work with our Wide Range Pressure Meter 840065. N.I.S.T. traceable certificate of calibration available.
These pressure transducers come with the thread size of 1/4′ NPT (per inch 18 teeth) and one adapter connector with the tread size of 1/4 inch PS (per inch 19 teeth). To use the 1/4′ NPT threads directly, you will need to remove the adaptor connector from the transducer manually.
Transducer 840066 840067 840068 840069 840070 Max Range Res. Max Range Res. Max Range Res. Max Range Res. Max Range Res. Bar 2 0.002 5 0.005 10 0.01 20 0.02 50 0.05 PSI 29 0.02 72.5 0.1 145 0.2 290 0.2 725 1 Kg cm² 2.04 0.002 5.095 0.005 10.19 0.01 20.4 0.02 50.95 0.05 mm Hg 1500 2 3750 5 7500 10 15000 20 37500 50 In Hg 59.05 0.05 147.6 0.1 295.2 0.2 590.5 0.5 1476 1 Meter H20 20.4 0.02 50.95 0.05 101.9 0.1 204 0.2 509.5 0.5 In H20 802 1 2006 2 4010 5 8020 10 20050 20 Atmospheres 1.974 0.002 4.935 0.005 9.87 0.01 19.74 0.02 49.35 0.05
Технические характеристики
Transducer
